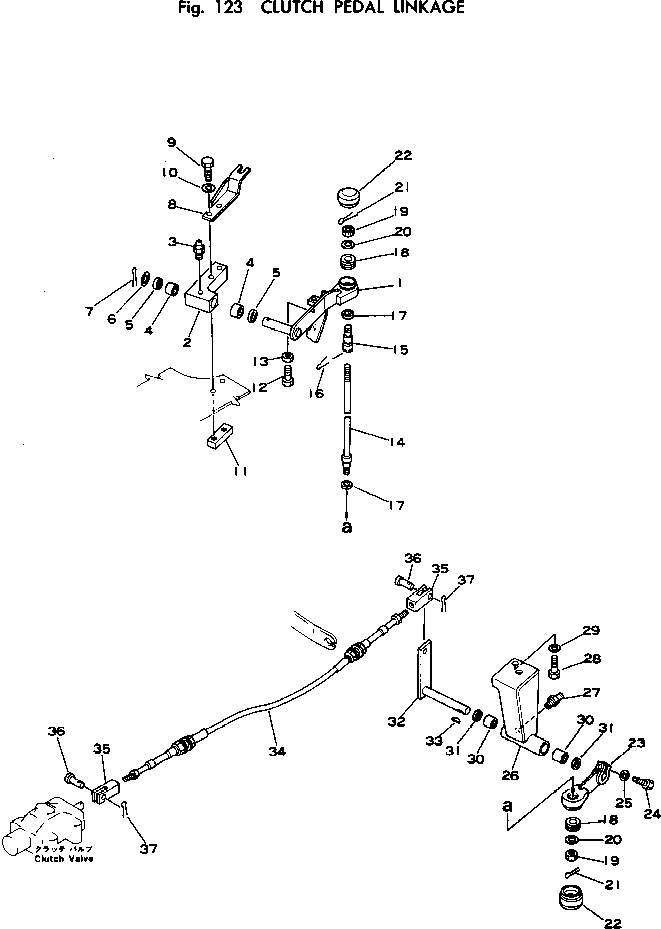

Запчасти Komatsu PW100-1 МУФТА ПЕДАЛЬ МЕХАНИЗМ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20D-43-14261

LEVER,CLUTCH

2

20D-43-14271

BLOCK,CLUTCH

3

07020-00000

FITTING,GREASE

4

06120-01612

BEARING,NEEDLE

5

06122-01603

SEAL,BEARING

6

01641-01626

WASHER

7

04050-04025

PIN,COTTER

8

20D-43-14281

BRACKET

9

01010-31075

BOLT

10

01643-31032

WASHER

11

01573-20206

SEAT

12

01016-30850

BOLT

13

01580-00806

NUT

14

20D-43-14310

ROD

15

20D-43-14320

PIN

16

04050-02025

PIN,COTTER

17

06122-01603

SEAL,BEARING

18

06000-53201

BEARING,BALL

19

01593-01008

NUT

20

01643-31032

WASHER

21

04050-02025

PIN,COTTER

22

20D-43-14330

CAP

23

20D-43-14340

LEVER

24

01010-30830

BOLT

25

01643-30823

WASHER

26

20D-43-14360

BRACKET

27

07020-00000

FITTING,GREASE

28

01010-31230

BOLT

29

01643-31232

WASHER

30

06120-01612

BEARING,NEEDLE

31

06122-01603

SEAL,BEARING

32

20D-43-14350

LEVER

33

04010-00519

KEY,WOODRUFF

34

20D-43-14250

CABLE

35

04211-00844

YOKE

36

04205-00822

PIN

37

04050-02012

PIN,COTTER
