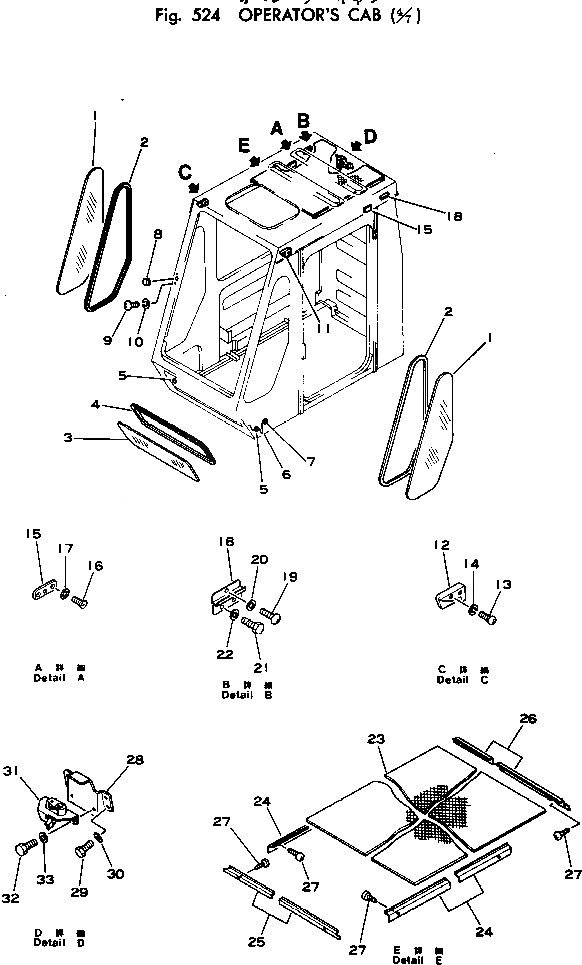

Запчасти Komatsu PW100-1 КАБИНА (/7) ОСНОВНАЯ РАМА И КАБИНА

|$0

20D-54-00100

OPERATOR'S CAB ASS'Y

1

205-54-61341

GLASS

2

205-54-63530

SEAL

3

205-54-61323

GLASS

3

205-54-61321

GLASS

4

205-54-63342

STRIP,WEATHER

4

205-54-63341

STRIP,WEATHER

5

08037-01008

GROMMET

6

205-06-61183

WIRE ASS'Y

7

08027-01410

CONNECTOR

8

09415-01610

CAP

9

01220-40512

SCREW

10

01601-20513

WASHER,SPRING

11

205-54-63280

TAIL,DOVE, L.H.

12

205-54-63270

TAIL,DOVE, R.H.

13

01220-40625

SCREW

14

01601-20619

WASHER,SPRING

15

205-54-63330

LOCK

16

01224-40820

SCREW

17

205-54-53730

WASHER,LOCK

18

205-54-61511

BRACKET

19

01220-40820

SCREW

20

01643-30823

WASHER

21

01010-30820

BOLT

22

01643-30823

WASHER

23

205-54-61372

SEAT

24

205-54-61392

FINISHER

25

205-54-63940

FINISHER

26

205-54-61381

FINISHER

27

205-54-53620

SCREW

28

205-54-63320

BRACKET

29

01010-30820

BOLT

30

01643-30823

WASHER

31

205-54-63310

LOCK ASS'Y

32

01010-30820

BOLT

33

01643-30823

WASHER
