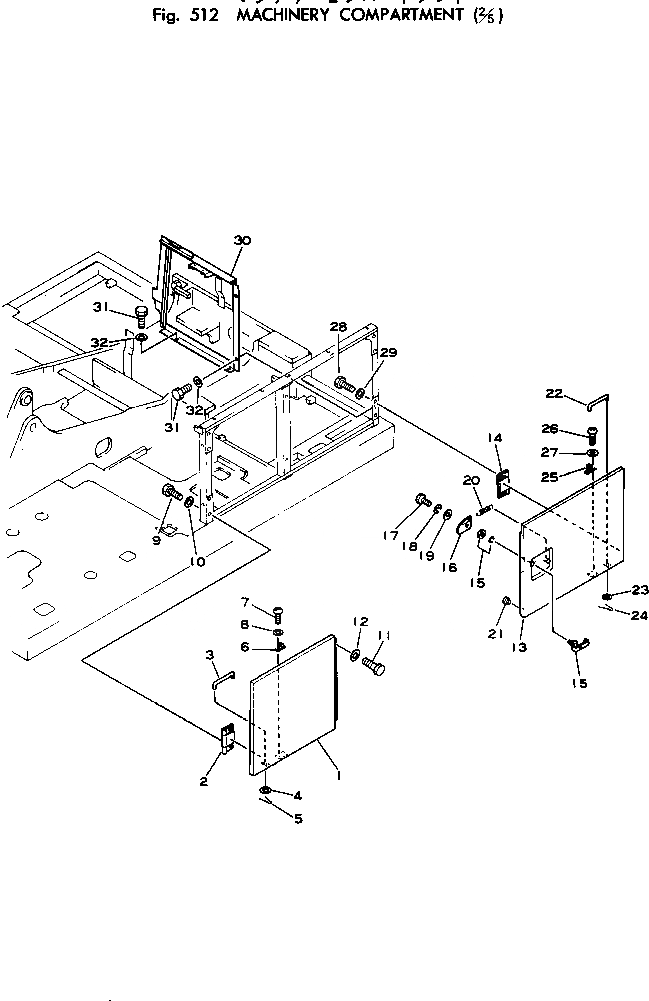

Запчасти Komatsu PW100-1 MACHINERY ОБСТАНОВКА (/) ОСНОВНАЯ РАМА И КАБИНА

|$0

20D-54-00010

COVER ASS'Y

1

COVER

2

205-54-64160

HINGE (WELDED)

3

203-54-32250

BAR

4

01641-01016

WASHER

5

04050-03018

PIN,COTTER

6

20B-54-12210

SPRING

7

01220-30408

SCREW

8

01641-00405

WASHER

9

01010-31230

BOLT

10

01643-31232

WASHER

11

01010-31230

BOLT

12

01643-31232

WASHER

|$13

20D-54-00020

COVER ASS'Y

13

COVER

14

205-54-64160

HINGE (WELDED)

15

21T-54-12180

HANDLE

16

21T-54-12250

PLATE,R.H.

17

01010-30616

BOLT

18

01602-00619

WASHER,SPRING

19

01643-30623

WASHER

20

135-43-14520

SPRING

21

203-54-32260

STOPPER

22

203-54-32250

BAR

23

01641-01016

WASHER

24

04050-03018

PIN,COTTER

25

20B-54-12210

SPRING

26

01220-30408

SCREW

27

01641-00405

WASHER

28

01010-31230

BOLT

29

01643-31232

WASHER

30

20D-54-12312

COVER,REAR, L.H.

31

01010-31230

BOLT

32

01643-31232

WASHER
