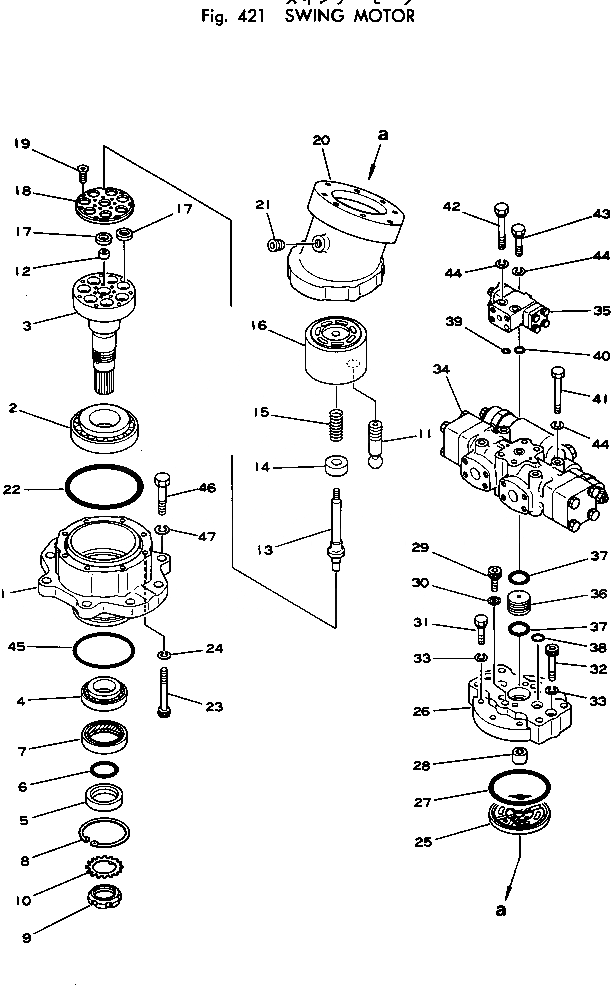

Запчасти Komatsu PW100-1 МОТОР ПОВОРОТА ШАССИ И ПОВОРОТН. СИСТЕМА

|$0

706-75-03704

SWING MOTOR ASS'Y,KMF090B

|$1

706-75-42003

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING

3

SHAFT,DRIVE

4

BEARING

5

RING

6

O-RING

7

SEAL,OIL

8

RING,SNAP

9

NUT

10

WASHER,LOCK

11

PISTON ASS'Y

12

BALL,CENTER

13

SHAFT,CENTER

14

RING,CENTER

15

SPRING

16

BLOCK,CYLINDER

17

HOLDER

18

RETAINER

19

SCREW

20

PLATE,PUMP

21

706-73-40360

PLUG

22

O-RING

23

BOLT

24

WASHER,SPRING

25

PLATE,VALVE

26

COVER,END

27

O-RING

28

BEARING

29

BOLT

30

GASKET

31

BOLT

32

BOLT

33

WASHER,SPRING

34

706-75-71103

BRAKE VALVE ASS'Y

35

706-75-77101

VALVE ASS'Y

36

706-75-90190

RING

37

07000-03035

O-RING

38

07000-13032

O-RING

39

07000-12012

O-RING

40

07000-02011

O-RING

41

01011-31205

BOLT

42

01011-31215

BOLT

43

01011-31245

BOLT

44

01602-01236

WASHER,SPRING

45

07000-02105

O-RING

46

01010-31445

BOLT

47

01602-01442

WASHER,SPRING
