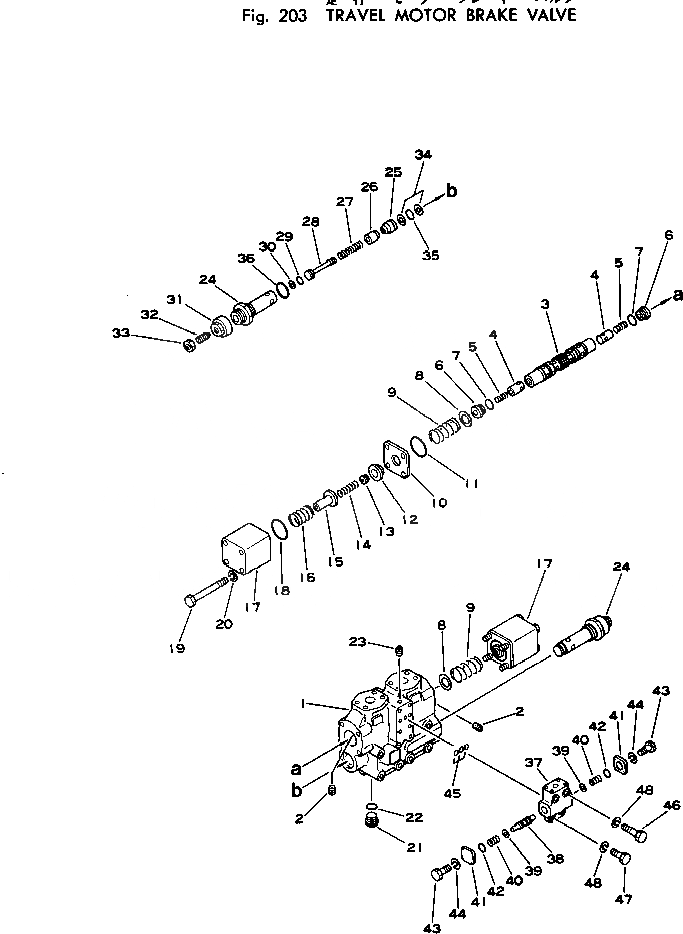

Запчасти Komatsu PW100-1 PКАНАТL МОТОР ТОРМОЗНОЙ КЛАПАН ХОД И ТРАНСМИССИЯ

|$0

706-76-70100

BRAKE VALVE ASS'Y

|$1

706-76-71200

BRAKE VALVE ASS'Y

1

BODY

2

SCREW

3

SPOOL

4

706-76-71160

VALVE

5

700-42-31210

SPRING

6

706-76-71170

PLUG

7

07002-12434

O-RING

8

706-76-71180

RING

9

706-76-71240

SPRING

10

706-76-71250

PLATE

11

07000-13050

O-RING

12

706-76-71260

RETAINER

13

706-76-71270

RETAINER

14

706-76-71280

SPRING

15

706-76-71290

RETAINER

16

706-76-71310

SPRING

17

706-76-71320

COVER

18

07000-13050

O-RING

19

01011-61210

BOLT

20

01602-01236

WASHER,SPRING

21

700-22-11370

PLUG

22

07002-12434

O-RING

23

07043-00108

PLUG

|$25

706-76-75200

RELIEF VALVE ASS'Y

24

SLEEVE

25

SEAT,VALVE

26

VALVE

27

SPRING

28

PISTON

29

O-RING

30

RING

31

PLUG

32

SCREW

33

NUT

34

07000-23022

O-RING

35

07001-03022

RING

36

07002-13634

O-RING

|$39

706-75-77400

SHUTTLE VALVE ASS'Y

37

BODY,VALVE

38

SPOOL

39

706-73-77140

PLATE

40

706-75-77150

SPRING

41

706-75-72750

PLATE

42

07000-12021

O-RING

43

01010-60618

BOLT

44

01602-00619

WASHER,SPRING

45

07000-12010

O-RING

46

01010-30850

BOLT

47

01010-30825

BOLT

48

01602-00825

WASHER,SPRING
