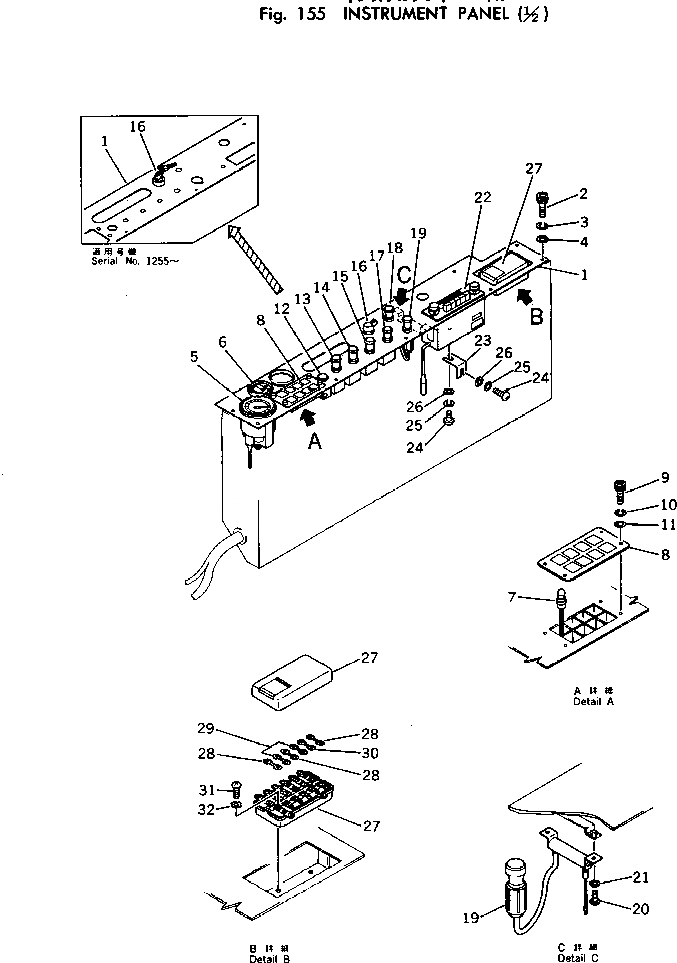

Запчасти Komatsu PW100-1 ПАНЕЛЬ ПРИБОРОВ (/) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20D-06-12292

PANEL,INSTRUMENT

1

20D-06-12291

PANEL,INSTRUMENT

2

205-06-62170

BOLT

3

205-06-62180

WASHER,SPRING

4

205-06-62190

WASHER

5

20B-06-21210

TACHOMETER

6

208-06-11280

GAUGE,WATER TEMPERATURE

7

21T-06-16620

LAMP ASS'Y

7

08111-12430

BULB, 3W

8

20D-06-12140

PLATE

9

205-06-62170

BOLT

10

205-06-62180

WASHER,SPRING

11

205-06-62190

WASHER

12

600-815-2371

SIGNAL,HEATER

13

08061-60010

SWITCH,LAMP

14

08061-40020

SWITCH,WORK LAMP

15

08061-40050

SWITCH,PARKING LAMP

16

201-06-21510

SWITCH,STARTING

16

08087-10000

SWITCH,STARTING

17

08183-00000

SWITCH,WIPER

18

09481-02400

SWITCH,HEATER

19

195-822-6150

LIGHTER,CIGARETTES

20

01220-30412

SCREW

21

01601-00410

WASHER,SPRING

22

201-06-21480

RADIO

22

205-06-62310

RADIO

23

205-06-62280

BRACKET

24

01220-30512

SCREW

25

01601-00513

WASHER,SPRING

26

01641-00508

WASHER

27

20D-06-11380

BOX,FUSE

28

175-06-35420

FUSE, 10A

29

175-06-35410

FUSE, 20A

30

175-06-35390

FUSE, 30A

31

01220-30616

SCREW

32

01611-06063

WASHER
