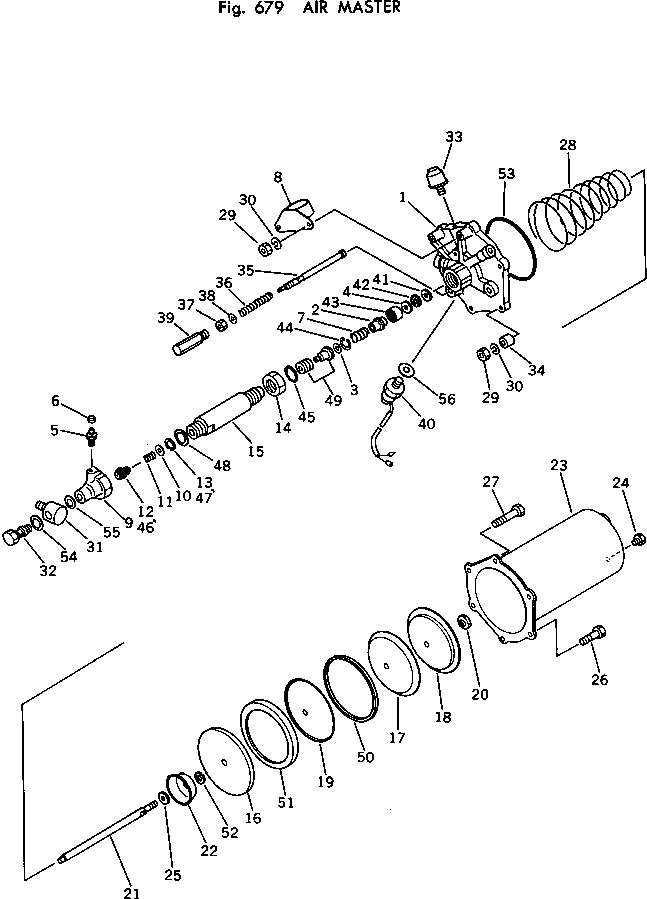

Запчасти Komatsu PW100-1 ВОЗД. МАЧТАER УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

20D-68-12101

AIR MASTER ASS'Y

1

JK234-10155

END PLATE ASS'Y

2

JK234-21104

RETAINER

3

JK234-21205

WASHER

4

JK234-21401

WASHER

5

JK1192-0001

PLUG

6

JK1271-0022

PROTECTOR

7

JK1412-0156

SPRING

8

JK1345-0017

BRACKET

|$9

JK231-11210

CHECK VALVE ASS'Y

9

JK231-24805

CAP

10

JK231-24600

WASHER

11

JK1412-0009

SPRING

12

VALVE ASS'Y

13

RING,SNAP

14

JK1110-0435

NUT

15

JK234-25211

CYLINDER

16

JK234-26702

PLATE

17

JK234-27201

EXPANDER

18

JK234-27003

PLATE

19

JK234-27102

PLATE

20

JK1113-0190

NUT

21

JK234-28510

ROD

22

JK234-29106

RETAINER

23

JK234-12041

SHELL ASS'Y

24

JK0553-1009

PLUG

25

JK234-37000

PLATE

26

JK0031-1060

BOLT

27

JK0021-1055

BOLT

28

JK1414-0018

SPRING

29

JK0141-1008

NUT

30

JK0303-1025

WASHER

31

JK1205-0021

CONNECTOR

32

JK1206-0073

BOLT

33

JK234-12100

COVER

34

JK1264-0042

COLLAR

35

JK234-13507

ROD

36

JK1420-0017

SPRING

37

JK1113-0183

NUT

38

JK1132-0166

WASHER

39

JK234-34902

COVER

40

JK234-18910

SWITCH

|$42

20D-68-12110

REPAIR KIT

41

SEAL,OIL

42

SEAL,OIL

43

PACKING

44

RING,SNAP

45

O-RING

46

VALVE ASS'Y

47

RING,SNAP

48

GASKET

49

PISTON ASS'Y

50

FELT,WICK

51

PACKING

52

GASKET

53

O-RING

54

GASKET

55

GASKET

56

SHIM
