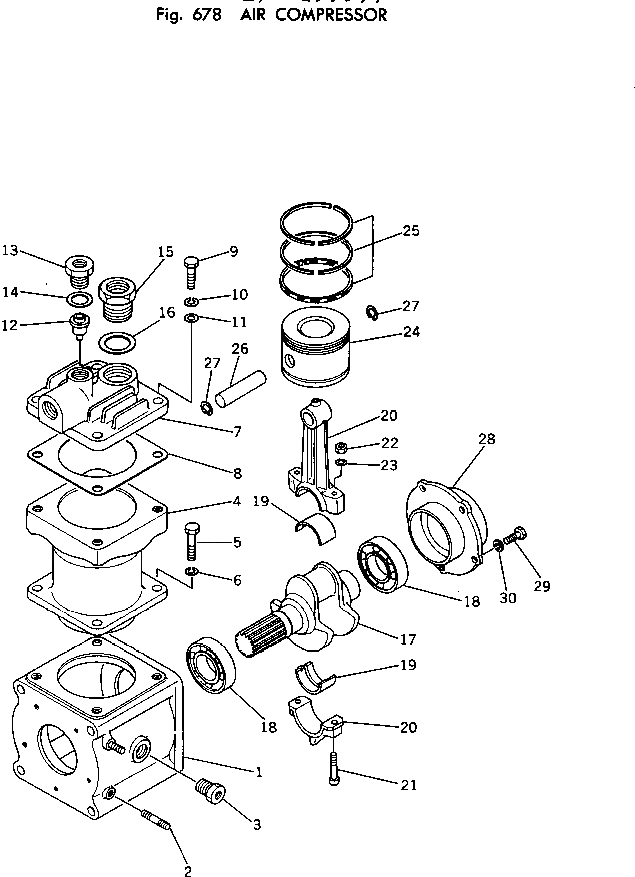

Запчасти Komatsu PW100-1 КОМПРЕССОР УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

6131-81-3110

AIR COMPRESSOR ASS'Y

1

DK487000-2200

CASE,CRANK

2

DK487046-0100

STUD

3

DK487007-0400

ADAPTER

4

DK487001-2500

CYLINDER

5

DK010110-2570

BOLT

6

DK014111-0440

WASHER,SPRING

7

DK487018-2020

HEAD,CYLINDER

8

DK487020-0400

GASKET

9

DK010110-2570

BOLT

10

DK014111-0440

WASHER,SPRING

11

DK014011-0140

WASHER

12

DK487021-1220

VALVE ASS'Y,UNLOADER

13

DK487054-0310

CAP

14

DK029331-8040

GASKET

15

DK487030-1420

DELIVERY VALVE A.

16

DK029332-2100

GASKET

17

DK487008-4000

CRANKSHAFT

18

DK016660-2640

BEARING

19

DK487014-0600

METAL

20

DK487013-0920

CONNECTING ROD A.

21

DK487017-0400

BOLT

22

DK029200-8130

NUT

23

DK029300-8490

WASHER,LOCK

24

DK487009-0400

PISTON

25

DK487099-5820

PISTON RING ASS'Y

26

DK487012-0400

PIN,PISTON

27

DK016110-1610

RING,SNAP

28

DK487003-1300

COVER

29

DK010006-1670

BOLT

30

DK014110-6440

WASHER,SPRING
