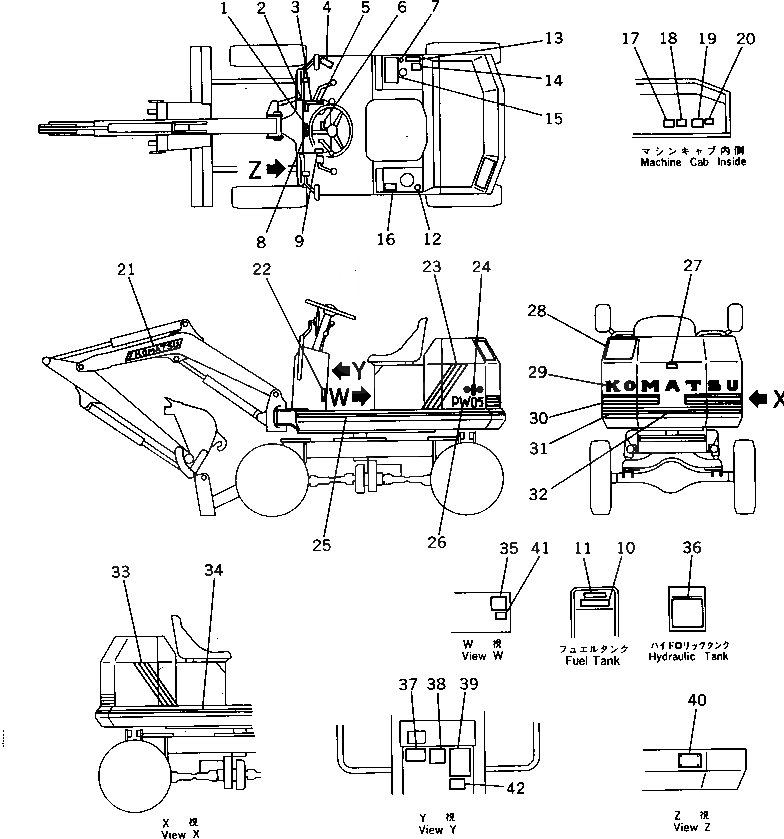

Запчасти Komatsu PW05-1 МАРКИРОВКА МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

FF8733-87120

PLATE, OPERATING,HEATER SIGNAL

2

20M-98-32260

PLATE, OPERATING,WORK LAMP

3

20N-54-16170

PLATE, INSTRUCTION,ENGINE CONTROL

4

20L-98-11160

PLATE, NAME,F-R

4

04418-13060

SCREW

5

20L-98-11130

PLATE, OPERATING,SWING

6

09683-01060

PLATE, OPERATING,STARTING SWITCH

7

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

8

FF7810-87170

PLATE, OPERATING,HST

9

20L-98-11120

PLATE, OPERATING,BLADE

10

09652-01101

PLATE, CAUTION,WATER DRAIN

11

09101-00100

PLATE, INSTRUCTION,RECOMMENDED FUEL OIL

12

09669-00002

PLATE, CAUTION,FUEL TANK

13

203-00-21190

PLATE, INSTRUCTION,HYDRAULIC OIL

14

09653-00100

PLATE, SAFETY,HYDRAULIC TANK

15

20L-98-11110

PLATE, OPERATING,WORK EQUIPMENT

16

21E-98-11360

PLATE, CAUTION,BRAKE

17

203-00-21180

PLATE, CAUTION,HYDRAULIC FILTER

18

20N-98-21290

PLATE, CAUTION,FUEL FILTER

19

09650-01103

PLATE, INSTRUCTION,RADIATOR

20

09668-00100

PLATE, SAFETY,RADIATOR CAP

21

20M-98-32340

PLATE, MARK,KOMATSU

22

21E-98-11380

PLATE, OPERATING,SWING LOCK LEVER

23

20M-98-32350

PLATE, STRIPE

24

09694-50160

PLATE, MARK,SYMBOL

25

20L-98-11230

PLATE, STRIPE

26

20L-98-11210

PLATE, MARK,PW05

27

09667-00100

PLATE, SAFETY,ENGINE COVER

28

20R-98-21130

PLATE, SAFETY,KEEP OUT OF TURNING AREA

29

09690-50900

PLATE, MARK,KOMATSU

30

20L-98-11221

PLATE, STRIPE

31

20L-98-11240

PLATE, STRIPE

32

20L-98-11250

PLATE, STRIPE

33

20M-98-32320

PLATE, STRIPE

34

20L-98-11230

PLATE, STRIPE

35

20L-98-11150

PLATE, DATA

36

20L-98-11140

CHART, OIL

37

20L-98-11320

PLATE, CAUTION

38

21E-98-11250

PLATE, CAUTION

39

20L-98-11310

PLATE, CAUTION,BEFORE OPERATING

40

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

40

04418-13060

SCREW

41

362-54-17230

PLATE, CAUTION

42

09173-00100

PLATE, SAFETY,INSPECTION AND MAINTENANCE
