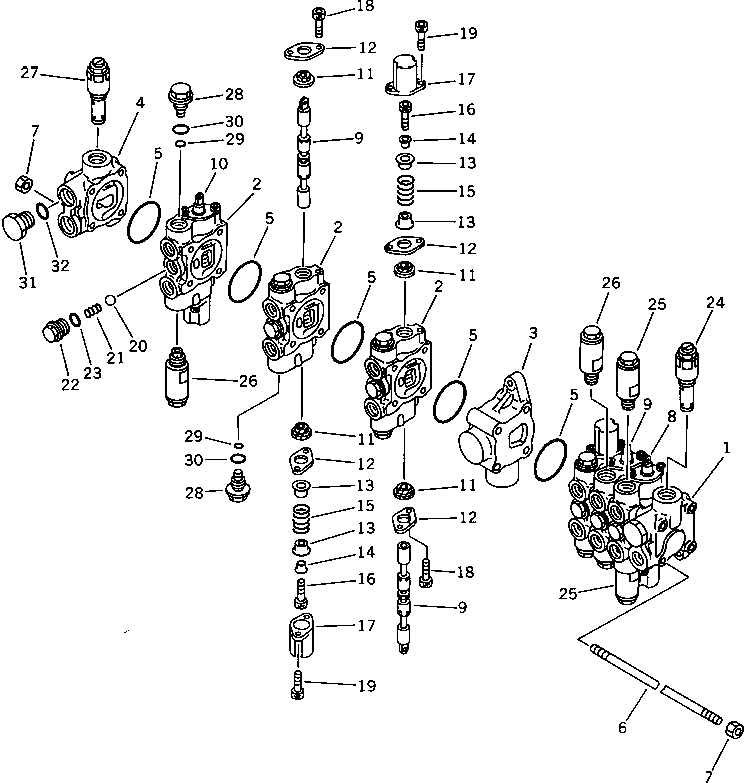

Запчасти Komatsu PW05-1 6-СЕКЦИОНН. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-36-11600

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

709-36-11510

STUD

7

01580-10806

NUT

8

SPOOL,SWING

9

SPOOL

10

SPOOL,BOOM

11

709-32-11530

SEAL,DUST

12

709-32-11540

PLATE

13

709-32-11550

RETAINER

14

709-32-11560

COLLAR

15

709-32-11580

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

01252-30610

BOLT

19

01252-30616

BOLT

20

04260-01270

BALL

21

709-32-11820

SPRING

22

709-32-11810

PLUG

23

07002-11823

O-RING

24

VALVE ASS'Y,SAFETY

25

VALVE ASS'Y,SUCTION AND SAFETY

26

VALVE ASS'Y,SUCTION AND SAFETY

27

700-22-51001

VALVE ASS'Y,MAIN RELIEF

28

709-32-11830

PLUG

29

709-32-11840

O-RING

30

07002-02034

O-RING

31

07040-12012

PLUG

32

07002-02034

O-RING
