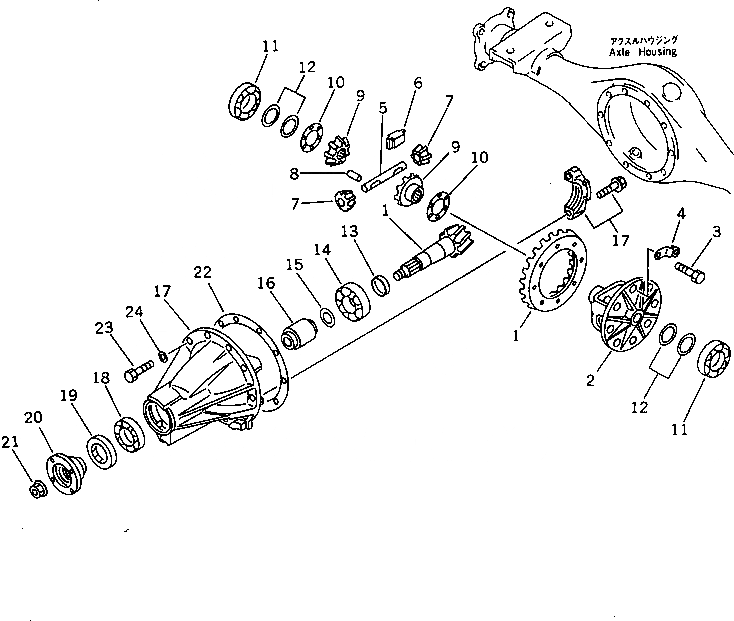

Запчасти Komatsu PW05-1 КОНЕЧНАЯ ПЕРЕДАЧА (ЗАДН.) МОСТ¤ КОЛЕСА И СИСТЕМАУПРАВЛЕНИЯ ПОВОРОТОМ

|$0

20L-24-11101

AXLE ASS'Y,REAR

|$2

20L-24-11600

FINAL DRIVE ASS'Y

1

20L-24-11660

GEAR SET

2

20L-24-11690

CASE

3

20L-24-11670

BOLT

4

20L-24-11680

STRAP

5

20L-24-11770

SHAFT,PINION

6

20L-24-11790

BLOCK

7

20L-24-11720

PINION

8

20L-24-11780

PIN,LOCK

9

20L-24-11710

GEAR,SIDE

10

20L-24-00030

WASHER ASS'Y,THRUST

10

WASHER, 0.75-0.80MM

10

WASHER, 0.80-0.85MM

10

WASHER, 0.85-0.90MM

10

WASHER, 0.90-0.95MM

11

20L-24-11810

BEARING

12

20L-24-00040

SHIM ASS'Y

12

SHIM, 0.05MM

12

SHIM, 0.07MM

12

SHIM, 0.1MM

12

SHIM, 0.2MM

12

SHIM, 0.5MM

13

20L-24-00050

WASHER ASS'Y,ADJUST

13

WASHER, 2.58MM

13

WASHER, 2.61MM

13

WASHER, 2.64MM

13

WASHER, 2.67MM

13

WASHER, 2.7MM

13

WASHER, 2.72MM

13

WASHER, 2.76MM

13

WASHER, 2.79MM

13

WASHER, 2.82MM

13

WASHER, 2.85MM

13

WASHER, 2.88MM

13

WASHER, 2.91MM

13

WASHER, 2.94MM

13

WASHER, 2.97MM

13

WASHER, 3.0MM

13

WASHER, 3.03MM

13

WASHER, 3.06MM

13

WASHER, 3.09MM

13

WASHER, 3.12MM

13

WASHER, 3.15MM

13

WASHER, 3.18MM

14

20L-24-11870

BEARING

15

20L-24-11910

WASHER

16

20L-24-11890

SPACER

17

20L-24-11640

CARRIER ASS'Y

18

20L-24-11880

BEARING

19

20L-24-12230

SEAL,OIL

20

20L-24-12240

FLANGE

21

20L-24-12250

NUT

22

20L-24-11610

GASKET

23

20L-24-11630

BOLT

24

20L-24-11620

WASHER
