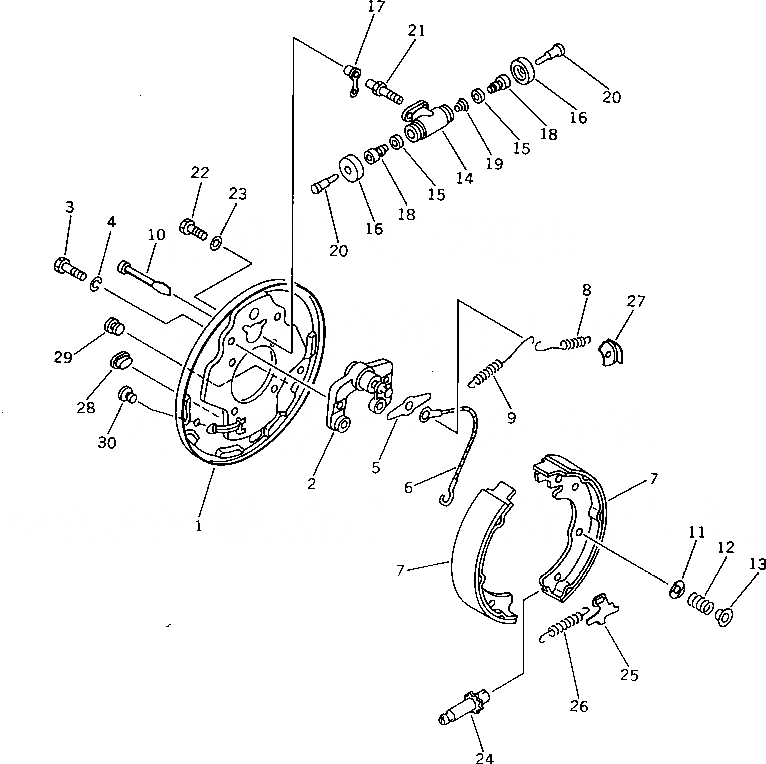

Запчасти Komatsu PW05-1 ТОРМОЗ. (ПЕРЕДН.) МОСТ¤ КОЛЕСА И СИСТЕМАУПРАВЛЕНИЯ ПОВОРОТОМ

|$0

20L-24-11500

DRIVE AXLE ASS'Y,FRONT

1

20L-24-13110

PLATE ASS'Y,L.H.

1

20L-24-13510

PLATE ASS'Y,R.H.

2

20L-24-13120

BLOCK

3

20L-24-13130

BOLT

4

20L-24-13140

WASHER,SPRING

5

20L-24-13160

PLATE

6

20L-24-13390

CABLE ASS'Y

7

20L-24-13150

SHOE ASS'Y

8

20L-24-13180

SPRING,RETURN, L.H.

9

20L-24-13170

SPRING,RETURN, R.H.

10

20L-24-13190

PIN

11

20L-24-13210

SEAT

12

20L-24-13220

SPRING

13

20L-24-13230

RETAINER

14

20L-24-13240

CYLINDER ASS'Y

15

20L-24-13260

CUP

16

20L-24-13270

COVER

17

20L-24-13280

CAP

18

20L-24-13290

PISTON

19

20L-24-13310

SPRING

20

20L-24-13320

ROD

21

20L-24-13330

SCREW

22

20L-24-13340

BOLT

23

20L-24-13350

WASHER

24

20L-24-13360

ADJUSTER ASS'Y,L.H.

24

20L-24-13520

ADJUSTER ASS'Y,R.H.

25

20L-24-13370

LEVER,L.H.

25

20L-24-13530

LEVER,R.H.

26

20L-24-13380

SPRING

27

20L-24-13410

GUIDE

28

20L-24-13420

PLUG

29

20L-24-13430

PLUG

30

20L-24-13440

PLUG
