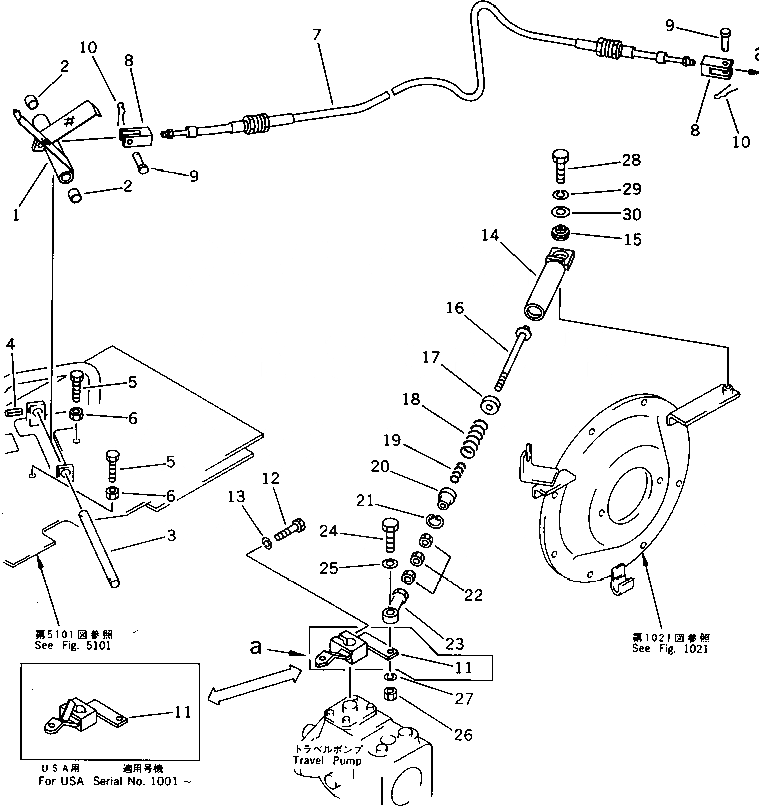

Запчасти Komatsu PW05-1 ПЕДАЛЬ ХОДА ХОД И ТРАНСМИССИЯ

1

20L-42-11111

PEDAL,(FOR KE AND USA)

1

20L-42-19110

PEDAL

2

09350-01420

BUSHING

3

20L-42-11121

SHAFT

4

04025-00424

PIN,SPRING

5

01016-50845

BOLT

6

01580-10806

NUT

7

20L-42-11130

CABLE

8

04210-20832

YOKE

9

04205-30825

PIN

10

04052-00833

PIN,SNAP

11

20L-42-11141

LEVER

11

20L-42-16140

LEVER,(FOR USA)

12

01010-50840

BOLT

13

01602-20825

WASHER,SPRING

14

20L-42-11311

GUIDE

15

20L-42-11321

BUSHING

16

20L-42-11331

ROD

17

20L-42-11341

RETAINER

18

FF7810-40840

SPRING

19

FF7814-40860

SPRING

20

20L-42-11351

RETAINER

21

04065-02812

RING,SNAP

22

20L-42-11360

NUT

23

04250-81056

END,ROD

24

01010-51035

BOLT

25

01640-21016

WASHER

26

01580-11008

NUT

27

01602-21030

WASHER,SPRING

28

01010-51035

BOLT

29

01602-21030

WASHER,SPRING

30

20L-42-11150

WASHER
