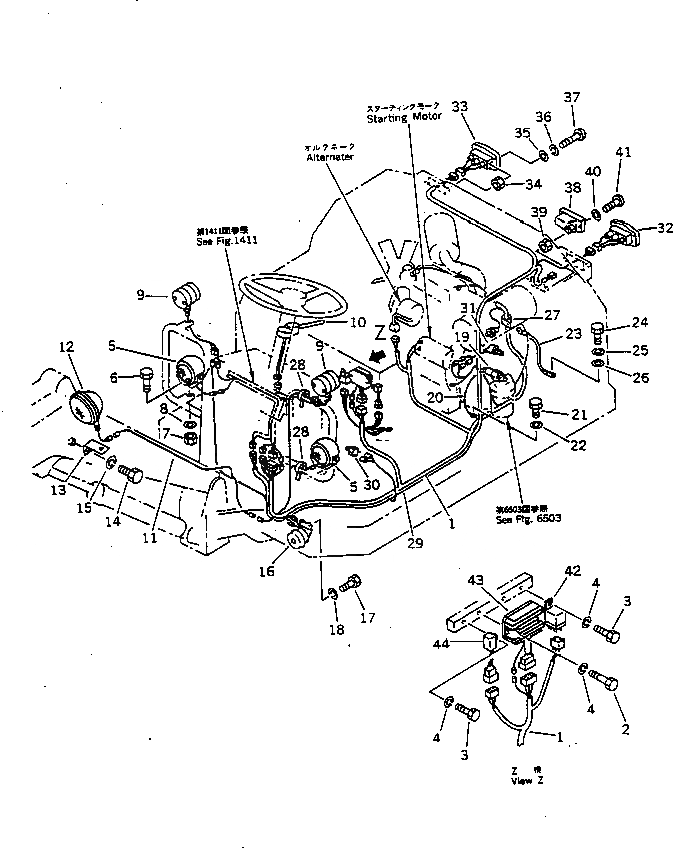

Запчасти Komatsu PW05-1 ЭЛЕКТРИКА (США СПЕЦ-Я.) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20L-06-16140

WIRE ASS'Y

2

01010-50630

BOLT

3

01010-50616

BOLT

4

01602-20619

WASHER,SPRING

5

FF7810-06410

LAMP,HEAD

5

FF7810-06420

BULB

5

FF7810-06430

LENS

6

01010-50820

BOLT

7

01580-10806

NUT

8

01602-20825

WASHER,SPRING

9

FF7814-06620

LAMP,TURN SIGNAL

9

08105-01220

BULB, 23W

10

08075-50000

SWITCH,TURN SIGNAL

11

20M-06-32151

WIRE ASS'Y

12

08125-01200

LAMP ASS'Y,WORK

12

08107-01260

BULB, 60W

12

08125-00006

LENS

13

20N-06-11222

BRACKET

14

01010-51225

BOLT

15

01602-21236

WASHER,SPRING

16

FF8710-21240

HORN

17

01010-50612

BOLT

18

01602-20619

WASHER,SPRING

19

FF7810-06370

SENSOR,HST OIL PRESSURE

20

FF7814-06280

CABLE

21

01010-50610

BOLT

22

01602-20619

WASHER,SPRING

23

20M-06-32170

WIRE ASS'Y

24

01010-50812

BOLT

25

01602-20825

WASHER,SPRING

26

01640-20816

WASHER

27

08036-11210

CLIP

28

362-43-15360

BAND

29

20L-06-16110

WIRE ASS'Y

30

08071-10000

SWITCH,STOP LAMP

31

08074-40000

SWITCH,BACK-UP LAMP

32

08133-21200

LAMP ASS'Y

33

08133-31200

LAMP ASS'Y

34

01580-10403

NUT

35

01641-20405

WASHER

36

01601-20410

WASHER,SPRING

37

01220-40430

SCREW

38

20L-06-16310

LAMP,BACK-UP

39

01580-10403

NUT

40

01641-20405

WASHER

41

01220-40416

SCREW

42

YM121522-77101

RELAY,SAFETY

43

YM119640-77710

LIMITER,CURRENT

44

YM121522-77721

INDICATOR,CHARGE
