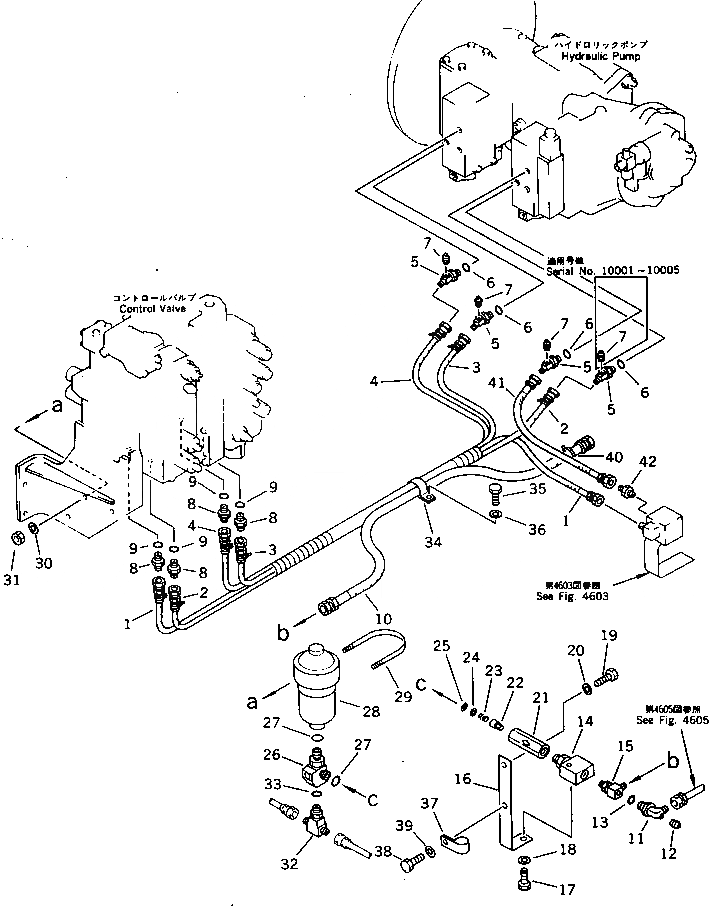

Запчасти Komatsu PF5LC-1 O.L.S.S. ТРУБЫ (/)(№-9) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|1

205-62-74150

HOSE ASS'Y

1

07108-20212

HOSE,(YELLOW)

2

205-62-71770

HOSE,(GREEN)

3

07108-20211

HOSE,(RED)

4

205-62-74290

HOSE,(BLUE)

5

07236-50210

ELBOW

6

07002-11423

O-RING

7

07042-30108

PLUG

|7

07042-30108

PLUG

8

07230-10210

UNION

9

07002-01423

O-RING

10

07102-20304

HOSE

11

07235-50315

ELBOW

12

07042-30108

PLUG

13

07002-02034

O-RING

14

205-62-71681

TEE

15

205-966-3690

TEE

16

205-62-71880

BRACKET

17

01010-51225

BOLT

18

01643-31232

WASHER

19

01010-51225

BOLT

20

01643-31232

WASHER

|21

205-60-64300

CHECK VALVE ASS'Y

21

205-60-64290

BODY

22

205-60-51390

POPPET

23

205-60-51410

SPRING

24

205-60-51420

SEAT

25

04065-01410

RING,SNAP

26

205-966-7460

TEE

|26

205-966-3680

TEE

27

07002-02034

O-RING

28

205-60-71152

ACCUMULATOR

|28

205-60-71151

ACCUMULATOR

29

07283-28981

CLIP

30

01643-31232

WASHER

31

01599-01214

NUT

32

209-62-27580

TEE

33

07002-02034

O-RING

34

21T-06-12650

CLIP

35

01010-51225

BOLT

36

01643-31232

WASHER

37

08036-03014

CLIP

38

01010-51225

BOLT

39

01643-31232

WASHER

40

07108-20204

HOSE

41

07238-00210

CONNECTOR
