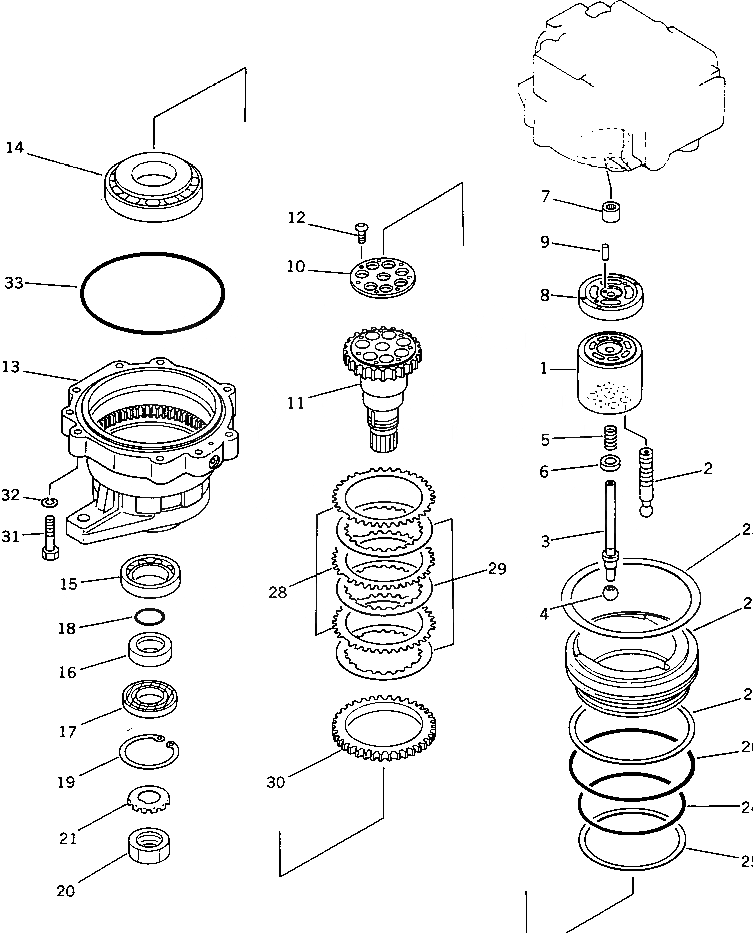

Запчасти Komatsu PF5LC-1 МОТОР ПОВОРОТА (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|1

706-75-11304

MOTOR ASS'Y

|1

706-75-11303

MOTOR ASS'Y

|1

706-75-11302

MOTOR ASS'Y

1

BLOCK,CYLINDER

2

PISTON SUB ASS'Y

3

SHAFT,CENTER

4

BALL,CENTER

5

SPRING

6

RING,CENTER

7

BEARING

8

PLATE,VALVE

9

PIN,DOWEL

10

RETAINER

11

SHAFT,DRIVE

|11

SHAFT,DRIVE

12

SCREW

13

CASE,BRAKE

14

BEARING

15

BEARING

16

RING

17

706-76-41931

SEAL,OIL

|17

706-76-40920

SEAL,OIL

18

O-RING

19

04065-09030

RING,SNAP

20

NUT

21

WASHER,LOCK

22

PISTON,BRAKE

23

SPRING

24

O-RING

25

RING,BACK-UP

26

O-RING

27

RING,BACK-UP

28

PLATE

29

DISC

30

PLATE

31

BOLT

32

WASHER,SPRING

33

O-RING
