Запчасти Komatsu PF5LC-1 ГУСЕНИЦЫ(№9-) ХОДОВАЯ

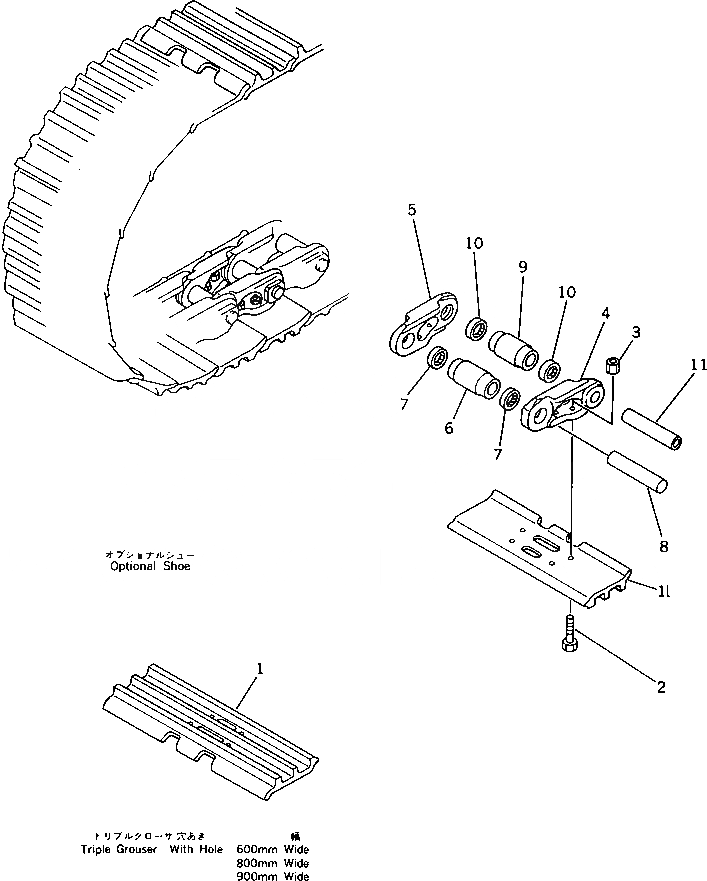

Схема запчастей Komatsu PF5LC-1 - ГУСЕНИЦЫ(№9-) ХОДОВАЯ

Артикул

Название

Примечание

Количество

|1

20Y-32-01212

TRACK SHOE ASS'Y

1

20Y-32-11110

SHOE,TRACK

2

20Y-32-11210

BOLT¤ SHOE (KIT)

3

154-32-31220

NUT¤ SHOE (KIT)

|4

20Y-32-00022

TRACK LINK ASS'Y

4

20Y-32-11122

LINK,L.H.

5

20Y-32-11132

LINK,R.H.

6

20Y-32-11140

BUSHING¤ REGULAR

7

20Y-32-11240

SEAL,DUST¤ REGULAR¤ W-TYPE

8

20Y-32-11150

PIN¤ REGULAR

9

20Y-32-11170

BUSHING¤ MASTER

10

20Y-32-11260

SEAL,DUST¤ MASTER¤ W-TYPE

11

20Y-32-11190

PIN¤ MASTER

|1

20Y-32-01202

TRACK SHOE ASS'Y

1

20Y-32-11310

SHOE,TRACK

2

20Y-32-11210

BOLT¤ SHOE (KIT)

3

154-32-31220

NUT¤ SHOE (KIT)

|4

20Y-32-00022

TRACK LINK ASS'Y

|1

20Y-32-01222

TRACK SHOE ASS'Y

1

20Y-32-11320

SHOE,TRACK

2

20Y-32-11210

BOLT¤ SHOE (KIT)

3

154-32-31220

NUT¤ SHOE (KIT)

|4

20Y-32-00022

TRACK LINK ASS'Y

|1

20Y-32-01232

TRACK SHOE ASS'Y

1

20Y-32-11330

SHOE,TRACK

2

20Y-32-11210

BOLT¤ SHOE (KIT)

3

154-32-31220

NUT¤ SHOE (KIT)

|4

20Y-32-00022

TRACK LINK ASS'Y

|1

20Y-32-05000

SHOE BOLT AND NUT K.

1

20Y-32-11210

BOLT¤ SHOE

2

154-32-31220

NUT¤ SHOE

6

20Y-98-09110

BUSHING¤ REGULAR

8

20Y-98-09010

PIN¤ REGULAR

9

20Y-98-09130

BUSHING¤ MASTER

11

20Y-98-09030

PIN¤ MASTER

6

20Y-98-09120

BUSHING¤ REGULAR

8

20Y-98-09020

PIN¤ REGULAR

9

20Y-98-09140

BUSHING¤ MASTER

11

20Y-98-09040

PIN¤ MASTER

Выбрано товаров: 39
