Запчасти Komatsu PF5LC-1 КОНЕЧНАЯ ПЕРЕДАЧА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

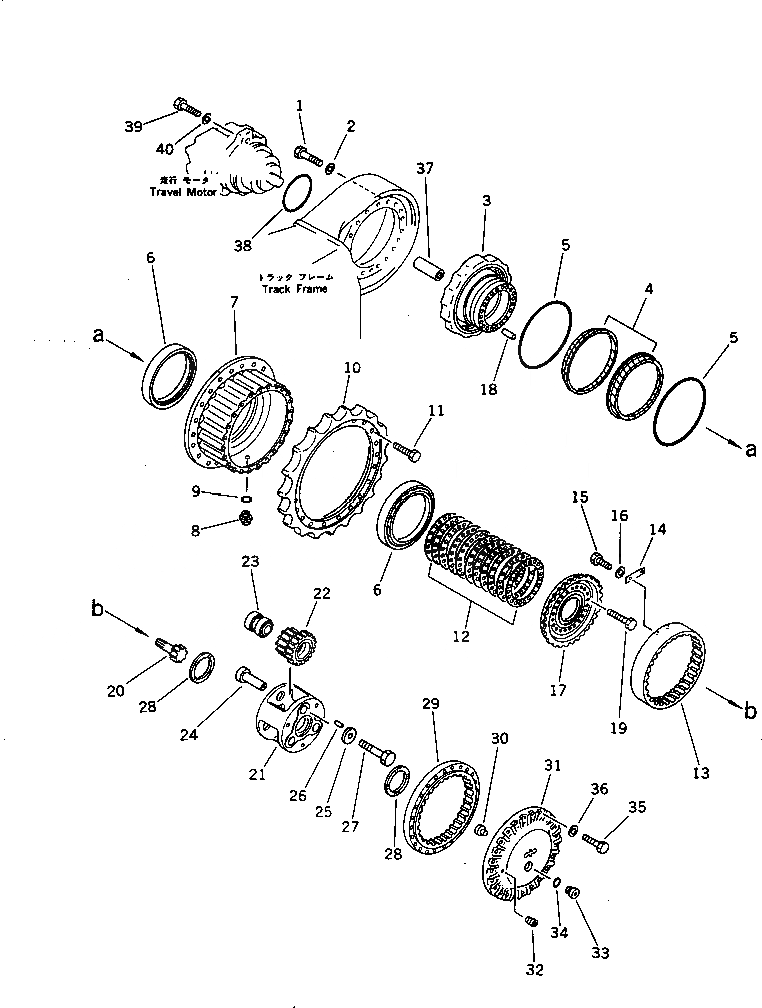

Схема запчастей Komatsu PF5LC-1 - КОНЕЧНАЯ ПЕРЕДАЧА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

Артикул

Название

Примечание

Количество

1

01010-51670

BOLT

2

01643-31645

WASHER

|3

205-27-00088

FINAL DRIVE ASS'Y PF5

|3

205-27-00087

FINAL DRIVE ASS'Y PF5

|3

205-27-00086

FINAL DRIVE ASS'Y PF5

|3

205-27-00085

FINAL DRIVE ASS'Y PF5

|3

205-27-00084

FINAL DRIVE ASS'Y PF5

|3

206-27-00028

FINAL DRIVE ASS'Y PF5LC

|3

206-27-00027

FINAL DRIVE ASS'Y PF5LC

|3

206-27-00026

FINAL DRIVE ASS'Y PF5LC

|3

206-27-00025

FINAL DRIVE ASS'Y PF5LC

|3

206-27-00024

FINAL DRIVE ASS'Y PF5LC

3

205-27-71481

SHAFT

|3

205-27-71480

SHAFT

|4

150-27-00028

FLOATING SEAL ASS'Y

|4

150-27-00027

FLOATING SEAL ASS'Y

4

150-27-00262

SEAL RING ASS'Y

|4

RING,SEAL

5

144-27-00310

O-RING ASS'Y

|5

150-27-00270

O-RING ASS'Y

|5

O-RING ASS'Y

|5

O-RING

6

20Y-27-11570

BEARING

|6

205-27-71430

BEARING

7

205-27-71471

HUB

|7

205-27-71470

HUB

8

07044-12412

PLUG

9

07002-02434

O-RING

10

205-27-71281

SPROCKET

11

205-27-71670

BOLT

12

20Y-27-11310

SPACER¤ 4.85MM

|12

205-27-00060

SHIM ASS'Y

|12

SHIM¤ 0.15MM

|12

SHIM¤ 0.2MM

12A

20Y-27-11320

SPACER¤ 4.90MM

|12A

20Y-27-11330

SPACER¤ 4.95MM

|12A

20Y-27-11340

SPACER¤ 5.00MM

|12A

20Y-27-11350

SPACER¤ 5.05MM

|12A

20Y-27-11360

SPACER¤ 5.10MM

13

205-27-71531

GEAR

|13

205-27-71530

GEAR

14

205-27-71610

PLATE

15

01010-50820

BOLT

16

01643-50823

WASHER

17

205-27-71630

GEAR

18

04020-01842

PIN,DOWEL

19

205-27-71680

BOLT

|19

205-27-71670

BOLT

20

205-27-71550

GEAR PF5

|20

206-27-44112

GEAR PF5LC

21

205-27-71510

CARRIER

22

205-27-00070

PLANETARY GEAR A. PF5

|22

206-27-00010

PLANETARY GEAR A. PF5LC

|22

GEAR PF5

|22

GEAR PF5LC

23

205-27-71560

BEARING

24

205-27-71582

PIN

25

205-27-71592

COLLAR

26

04020-00616

PIN,DOWEL

27

01010-51465

BOLT

28

20Y-27-11250

SPACER

|28

205-27-71570

SPACER

29

205-27-71520

GEAR PF5

|29

206-27-44132

GEAR PF5LC

30

205-27-71360

BUTTON

31

205-27-71492

COVER

32

07043-70312

PLUG

33

07040-12414

PLUG

34

07002-02434

O-RING

35

01010-51685

BOLT

36

01643-31645

WASHER

37

205-27-71131

COUPLING

38

07000-05190

O-RING

39

01010-51670

BOLT

40

01643-31645

WASHER

12A

20Y-27-11320

SPACER¤ 4.90MM

|12A

20Y-27-11330

SPACER¤ 4.95MM

|12A

20Y-27-11340

SPACER¤ 5.00MM

|12A

20Y-27-11350

SPACER¤ 5.05MM

|12A

20Y-27-11360

SPACER¤ 5.10MM

Выбрано товаров: 80
