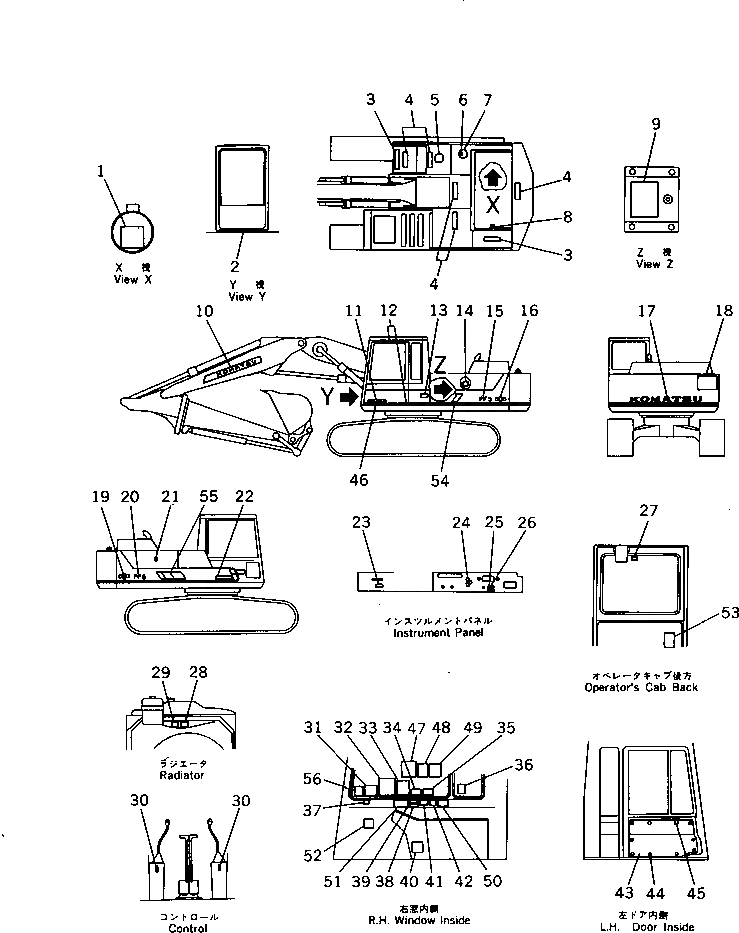

Запчасти Komatsu PF5LC-1 МАРКИРОВКА(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
09637-00661
PLATE¤ INSTRUCTION
2
205-54-76480
PLATE
3
205-54-76511
SEAT,NONSKID
4
154-54-23260
SEAT,NONSKID
5
09669-00002
PLATE¤ CAUTION,FUEL
6
09653-00100
PLATE¤ SAFETY,HYDRAULIC TANK CAP
7
09669-00003
PLATE¤ CAUTION,HYDRAULIC TANK
8
09667-00100
PLATE¤ SAFETY
9
207-00-31380
PLATE¤ OPERATING
10
205-966-1210
PLATE¤ MARK,L.H.
|10
205-966-1130
PLATE¤ MARK,R.H.
11
09690-50500
PLATE¤ MARK
12
205-00-63770
PLATE
13
09602-01643
PLATE¤ NAME
|13
205-00-72430
RIVET
|13
205-00-71540
SCREW
14
205-00-71510
PLATE¤ OPERATING
15
205-966-1180
PLATE¤ MARK PF5
|15
205-966-2470
PLATE¤ MARK PF5LC
16
205-966-1170
PLATE¤ MARK
17
205-00-71110
PLATE¤ MARK
18
09133-00100
PLATE¤ SAFETY,KEEP OUT OF TURNING AREA
19
205-966-1170
PLATE¤ MARK PF5
|19
205-00-71240
PLATE¤ MARK PF5LC
|19
205-966-1170
PLATE¤ MARK PF5LC
20
205-966-1180
PLATE¤ MARK PF5
|20
205-966-2470
PLATE¤ MARK PF5LC
21
205-00-73360
PLATE¤ OPERATING
22
09690-50500
PLATE¤ MARK
23
09685-00002
PLATE¤ OPERATING,SWING LOCK LEVER
24
09683-01060
PLATE¤ OPERATING,STARTING SWITCH
25
205-00-71470
PLATE¤ OPERATING
26
205-00-71480
PLATE¤ OPERATING
27
205-00-63230
PLATE¤ CAUTION
28
09668-00100
PLATE¤ SAFETY
29
205-00-65150
PLATE¤ CAUTION
30
09685-00001
PLATE¤ OPERATING,SAFETY LOCK LEVER
31
205-00-71810
PLATE
32
205-00-71291
PLATE¤ OPERATING
33
205-00-71350
PLATE¤ OPERATING
34
205-00-65120
PLATE¤ CAUTION
35
205-00-65190
PLATE¤ CAUTION
36
205-00-71560
PLATE¤ CAUTION
37
205-00-52192
PLATE¤ CAUTION
38
09651-00100
PLATE¤ SAFETY,BEFORE OPERATING
39
09131-00100
PLATE¤ SAFETY,SWING LOCK LEVER
40
205-966-7970
PLATE¤ CAUTION PF5
|40
205-966-2460
PLATE¤ CAUTION PF5LC
41
09173-00100
PLATE¤ SAFETY
42
205-00-63250
PLATE¤ CAUTION
43
205-966-7920
COVER
44
205-54-72350
CLIP ASS'Y
45
205-00-71340
PLATE¤ OPERATING
46
205-966-1160
PLATE
47
205-966-7960
PLATE¤ OPERATING
48
205-966-7940
PLATE¤ OPERATING
49
205-966-7930
PLATE¤ OPERATING
50
207-00-14250
PLATE¤ INSTRUCTION
51
205-966-7950
PLATE¤ CAUTION
52
09699-00000
PLATE¤ CAUTION
53
205-966-7990
PLATE
54
205-966-1150
PLATE¤ MARK
55
205-966-1140
PLATE¤ MARK
56
205-966-1220
PLATE
Выбрано товаров: 64
