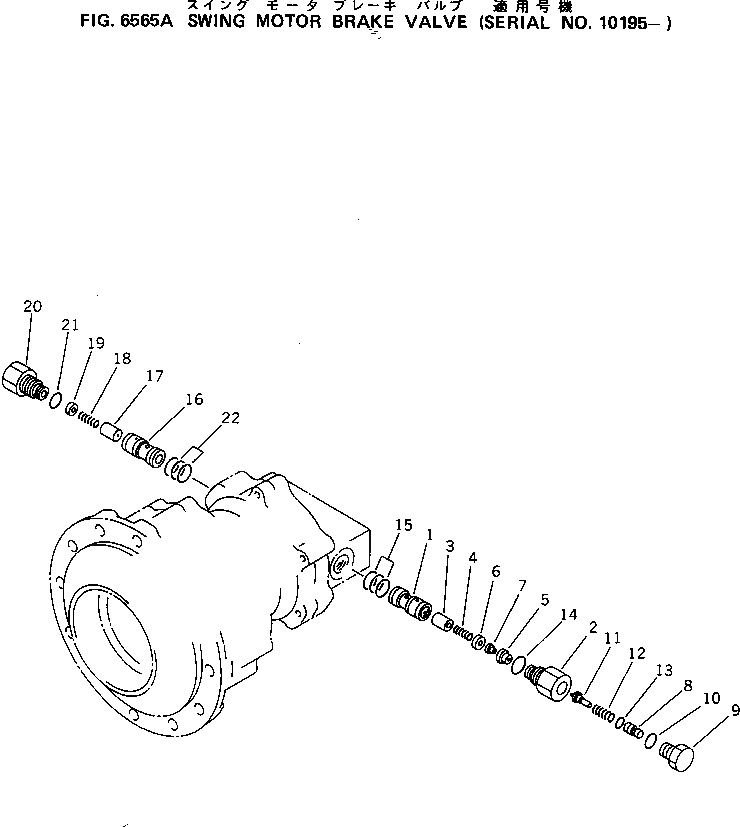

Запчасти Komatsu PF5LC-1 МОТОР ПОВОРОТА ТОРМОЗНОЙ КЛАПАН(№9-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

205-966-5903

SWING MOTOR ASS'Y

|1

205-966-5902

SWING MOTOR ASS'Y

|1

205-966-5901

SWING MOTOR ASS'Y

|1

TZ907S200001-A

MOTOR ASS'Y

|1

TZ907S200000-A

MOTOR ASS'Y

|1

TZ501S213501-E

RELIEF VALVE ASS'Y

|1

TZ501S213500-B

RELIEF VALVE ASS'Y

1

GUIDE,MAIN

2

GUIDE,PILOT

3

VALVE

4

SPRING

5

SEAT,PILOT

6

COLLAR

7

ORIFICE

8

RETAINER

|8

RETAINER

9

TZ24C4106-00

PLUG

10

TZ23C4007-00

SHIM

11

TZ501S2037-00

POPPET

|11

TZ21C4018-00

POPPET

12

TZ21C4019-00

SPRING

13

07000-11008

O-RING (KIT)

14

07000-13022

O-RING (KIT)

15

TZARP568-019-9

O-RING (KIT)

|16

TZ501S2136-00

PLUG ASS'Y

16

GUIDE,MAIN

17

VALVE

18

SPRING

19

COLLAR

20

PLUG

21

07000-13022

O-RING (KIT)

22

TZARP568-019-9

O-RING (KIT)

23

TZ907S9000-00

SEAL KIT

|23

TZJW1516-G16-9

O-RING

|23

TZTC135-165-14

SEAL,OIL

|23

07000-11008

O-RING

|23

07000-13022

O-RING

|23

TZARP568-019-9

O-RING

|23

TZSBI-20-40-11

O-RING,OIL

|23

TZJW1516-G49-9

O-RING

|23

TZJW1516-G40-9

O-RING

|23

07000-12014

O-RING

|23

07000-12011

O-RING
