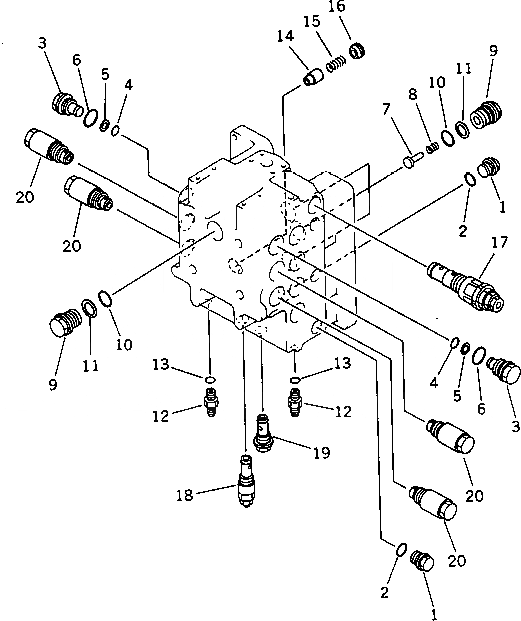

Запчасти Komatsu PF5LC-1 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-79-12506
CONTROL VALVE ASS'Y
|1
709-79-12505
CONTROL VALVE ASS'Y
|1
709-79-12504
CONTROL VALVE ASS'Y
|1
709-79-12503
CONTROL VALVE ASS'Y
|1
709-79-12502
CONTROL VALVE ASS'Y
|1
709-79-12501
CONTROL VALVE ASS'Y
|1
709-79-12500
CONTROL VALVE ASS'Y
|1
709-74-92106
VALVE ASS'Y
|1
709-74-92105
VALVE ASS'Y
|1
709-74-92104
VALVE ASS'Y
1
700-22-11370
PLUG
2
07002-12434
O-RING
3
700-84-13960
PLUG
4
700-22-11410
O-RING
5
700-80-64220
RING,BACK-UP
6
07002-03034
O-RING
7
709-74-92810
VALVE,CHECK
|7
709-75-92210
VALVE,CHECK
8
709-75-92220
SPRING
9
709-74-92821
PLUG
|9
709-74-92820
PLUG
|9
709-75-92230
PLUG
10
700-93-11320
O-RING
11
700-93-11330
RING,BACK-UP
12
709-75-92240
UNION
13
07002-01623
O-RING
14
709-74-92281
VALVE
|14
709-74-92280
VALVE
15
709-74-92290
SPRING
16
709-74-92310
SEAT
17
709-70-51200
RELIEF VALVE ASS'Y
18
709-70-55103
RELIEF VALVE ASS'Y
|18
709-70-55900
RELIEF VALVE ASS'Y
|18
709-70-55102
RELIEF VALVE ASS'Y
|18
709-70-55101
RELIEF VALVE ASS'Y
19
709-70-91300
ORIFICE ASS'Y
20
709-70-61201
VALVE ASS'Y
|20
709-70-61200
VALVE ASS'Y
Выбрано товаров: 38
