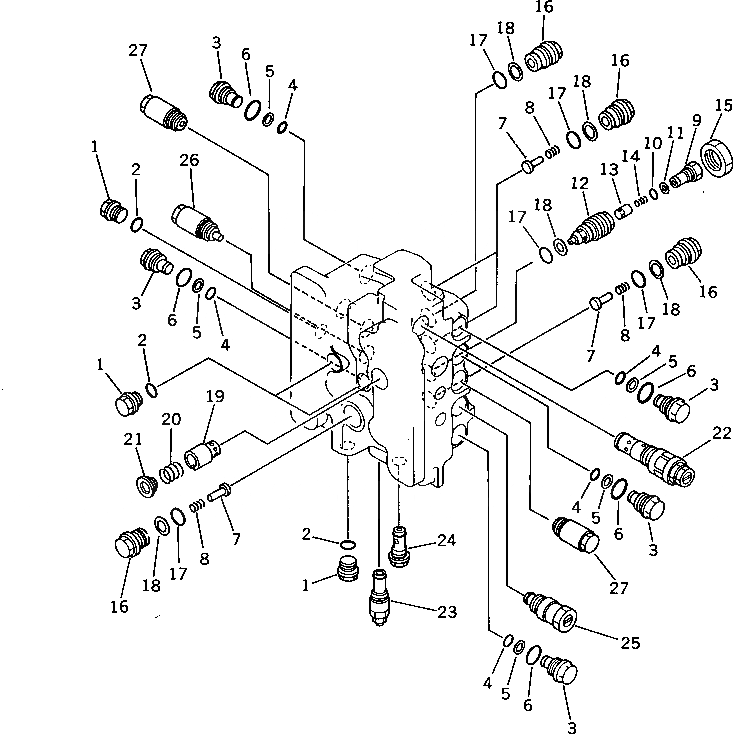

Запчасти Komatsu PF5LC-1 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-12506

CONTROL VALVE ASS'Y

|1

709-79-12505

CONTROL VALVE ASS'Y

|1

709-79-12504

CONTROL VALVE ASS'Y

|1

709-79-12503

CONTROL VALVE ASS'Y

|1

709-79-12502

CONTROL VALVE ASS'Y

|1

709-79-12501

CONTROL VALVE ASS'Y

|1

709-79-12500

CONTROL VALVE ASS'Y

|1

709-75-92402

VALVE ASS'Y

|1

709-75-92401

VALVE ASS'Y

|1

709-75-92400

VALVE ASS'Y

1

700-22-11370

PLUG

2

07002-12434

O-RING

3

700-84-13960

PLUG

4

700-22-11410

O-RING

5

700-80-64220

RING,BACK-UP

6

07002-03034

O-RING

7

709-74-92810

VALVE,CHECK

|7

709-75-92210

VALVE,CHECK

8

709-75-92220

SPRING

9

709-74-92450

PLUG

10

07000-12010

O-RING

11

07001-02010

RING,BACK-UP

12

709-74-92440

PLUG

13

706-73-70140

VALVE,CHECK

14

706-73-70150

SPRING

15

709-74-92460

NUT

16

709-74-92821

PLUG

|16

709-74-92820

PLUG

|16

709-75-92230

PLUG

17

700-93-11320

O-RING

18

700-93-11330

RING,BACK-UP

19

709-74-92281

VALVE

|19

709-74-92280

VALVE

20

709-74-92290

SPRING

21

709-74-92310

SEAT

22

709-70-51200

RELIEF VALVE ASS'Y

23

709-70-55103

RELIEF VALVE ASS'Y

|23

709-70-55900

RELIEF VALVE ASS'Y

|23

709-70-55102

RELIEF VALVE ASS'Y

|23

709-70-55101

RELIEF VALVE ASS'Y

24

709-70-91300

ORIFICE ASS'Y

25

700-70-62200

VALVE ASS'Y

26

709-70-61601

VALVE ASS'Y

|26

709-70-61600

VALVE ASS'Y

27

709-70-61201

VALVE ASS'Y

|27

709-70-61200

VALVE ASS'Y
