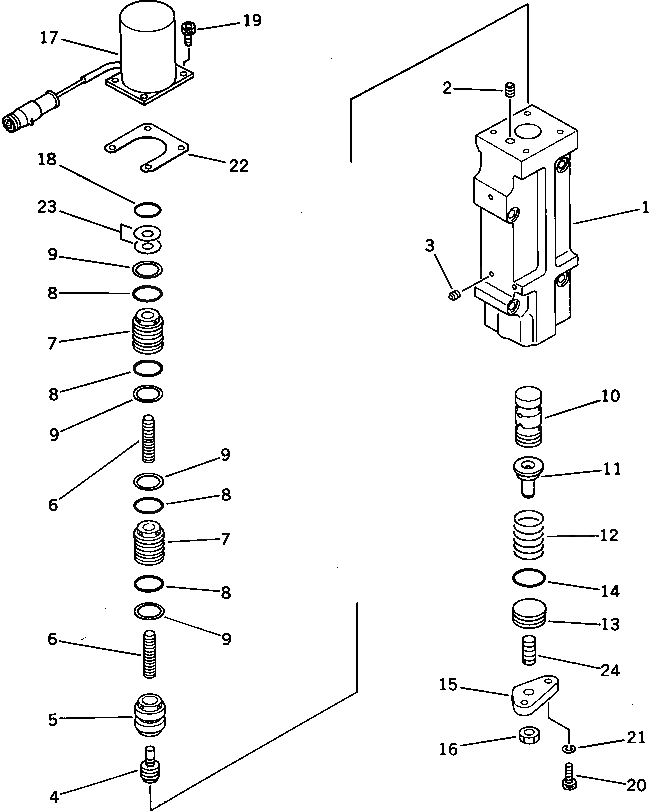

Запчасти Komatsu PF5LC-1 ГТР РЕГУЛИР. УПРАВЛЯЮЩ. КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-01063

PUMP ASS'Y

|1

708-25-07611

VALVE ASS'Y,REAR

|1

708-25-18600

VALVE ASS'Y

|1

708-23-07051

BODY ASS'Y

1

BODY

2

PLUG

3

EXPANDER

4

708-23-18120

PISTON

5

708-23-18130

SLEEVE

6

708-23-18140

PISTON

7

708-23-18150

SLEEVE

8

07000-12016

O-RING

9

07001-02016

RING,BACK-UP

10

708-23-18161

SPOOL

11

708-23-18170

SEAT

12

SPRING

13

PLUG

14

O-RING

15

COVER

16

NUT

17

708-23-18221

SOLENOID ASS'Y

18

07000-02016

O-RING

19

708-25-18250

BOLT

20

BOLT

21

WASHER,SPRING

22

SHIM¤ 0.50MM

23

SHIM¤ 0.50MM,0.5MM

24

SCREW
