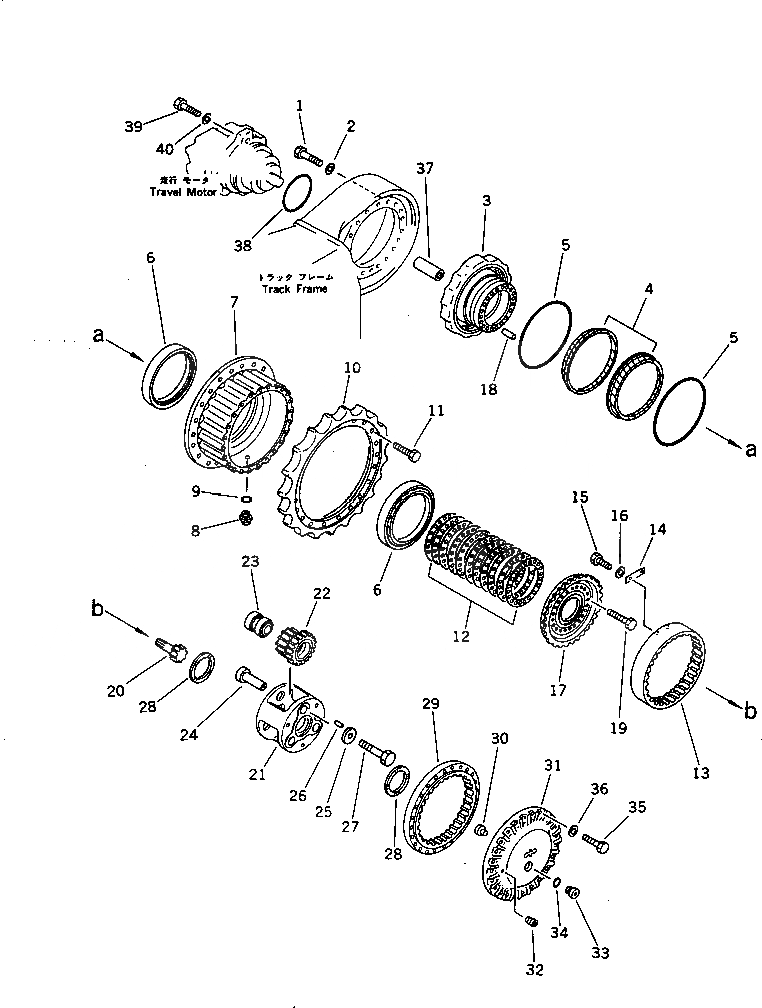

Запчасти Komatsu PF5-1 КОНЕЧНАЯ ПЕРЕДАЧА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА
№
Артикул
Название
Примечание
Количество
1
01010-51670
BOLT
2
01643-31645
WASHER
|3
205-27-00088
FINAL DRIVE ASS'Y PF5
|3
205-27-00087
FINAL DRIVE ASS'Y PF5
|3
205-27-00086
FINAL DRIVE ASS'Y PF5
|3
205-27-00085
FINAL DRIVE ASS'Y PF5
|3
205-27-00084
FINAL DRIVE ASS'Y PF5
|3
206-27-00028
FINAL DRIVE ASS'Y PF5LC
|3
206-27-00027
FINAL DRIVE ASS'Y PF5LC
|3
206-27-00026
FINAL DRIVE ASS'Y PF5LC
|3
206-27-00025
FINAL DRIVE ASS'Y PF5LC
|3
206-27-00024
FINAL DRIVE ASS'Y PF5LC
3
205-27-71481
SHAFT
|3
205-27-71480
SHAFT
|4
150-27-00028
FLOATING SEAL ASS'Y
|4
150-27-00027
FLOATING SEAL ASS'Y
4
150-27-00262
SEAL RING ASS'Y
|4
RING,SEAL
5
144-27-00310
O-RING ASS'Y
|5
150-27-00270
O-RING ASS'Y
|5
O-RING ASS'Y
|5
O-RING
6
20Y-27-11570
BEARING
|6
205-27-71430
BEARING
7
205-27-71471
HUB
|7
205-27-71470
HUB
8
07044-12412
PLUG
9
07002-02434
O-RING
10
205-27-71281
SPROCKET
11
205-27-71670
BOLT
12
20Y-27-11310
SPACER¤ 4.85MM
|12
205-27-00060
SHIM ASS'Y
|12
SHIM¤ 0.15MM
|12
SHIM¤ 0.2MM
12A
20Y-27-11320
SPACER¤ 4.90MM
|12A
20Y-27-11330
SPACER¤ 4.95MM
|12A
20Y-27-11340
SPACER¤ 5.00MM
|12A
20Y-27-11350
SPACER¤ 5.05MM
|12A
20Y-27-11360
SPACER¤ 5.10MM
13
205-27-71531
GEAR
|13
205-27-71530
GEAR
14
205-27-71610
PLATE
15
01010-50820
BOLT
16
01643-50823
WASHER
17
205-27-71630
GEAR
18
04020-01842
PIN,DOWEL
19
205-27-71680
BOLT
|19
205-27-71670
BOLT
20
205-27-71550
GEAR PF5
|20
206-27-44112
GEAR PF5LC
21
205-27-71510
CARRIER
22
205-27-00070
PLANETARY GEAR A. PF5
|22
206-27-00010
PLANETARY GEAR A. PF5LC
|22
GEAR PF5
|22
GEAR PF5LC
23
205-27-71560
BEARING
24
205-27-71582
PIN
25
205-27-71592
COLLAR
26
04020-00616
PIN,DOWEL
27
01010-51465
BOLT
28
20Y-27-11250
SPACER
|28
205-27-71570
SPACER
29
205-27-71520
GEAR PF5
|29
206-27-44132
GEAR PF5LC
30
205-27-71360
BUTTON
31
205-27-71492
COVER
32
07043-70312
PLUG
33
07040-12414
PLUG
34
07002-02434
O-RING
35
01010-51685
BOLT
36
01643-31645
WASHER
37
205-27-71131
COUPLING
38
07000-05190
O-RING
39
01010-51670
BOLT
40
01643-31645
WASHER
12A
20Y-27-11320
SPACER¤ 4.90MM
|12A
20Y-27-11330
SPACER¤ 4.95MM
|12A
20Y-27-11340
SPACER¤ 5.00MM
|12A
20Y-27-11350
SPACER¤ 5.05MM
|12A
20Y-27-11360
SPACER¤ 5.10MM
Выбрано товаров: 80
