Запчасти Komatsu PF5-1 МАРКИРОВКА(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

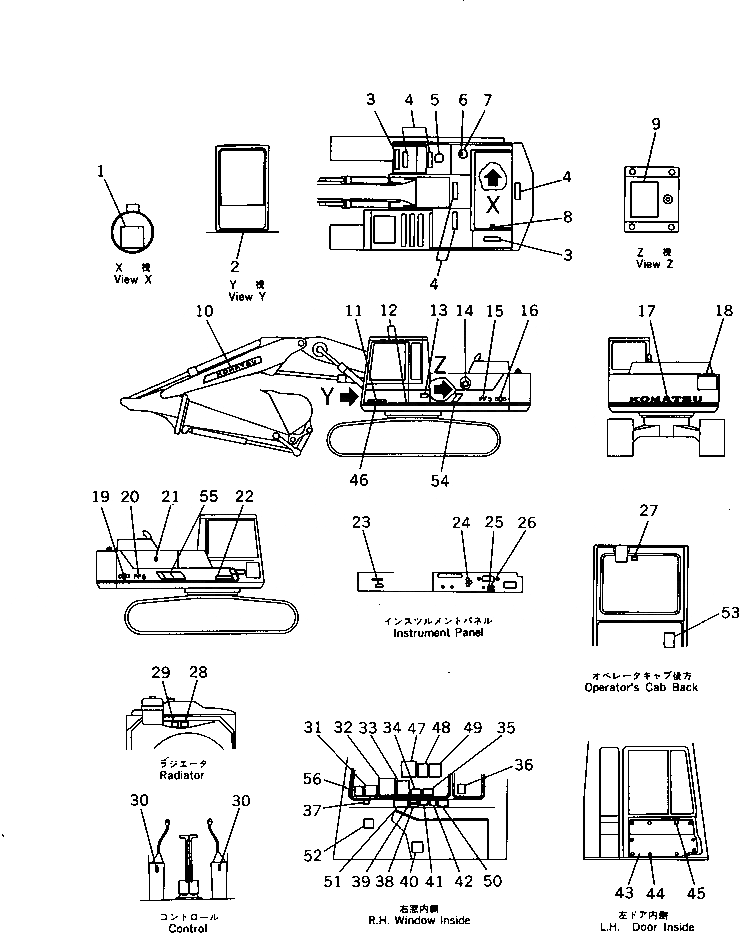

Схема запчастей Komatsu PF5-1 - МАРКИРОВКА(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

09637-00661

PLATE¤ INSTRUCTION

2

205-54-76480

PLATE

3

205-54-76511

SEAT,NONSKID

4

154-54-23260

SEAT,NONSKID

5

09669-00002

PLATE¤ CAUTION,FUEL

6

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

7

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

8

09667-00100

PLATE¤ SAFETY

9

207-00-31380

PLATE¤ OPERATING

10

205-966-1210

PLATE¤ MARK,L.H.

|10

205-966-1130

PLATE¤ MARK,R.H.

11

09690-50500

PLATE¤ MARK

12

205-00-63770

PLATE

13

09602-01643

PLATE¤ NAME

|13

205-00-72430

RIVET

|13

205-00-71540

SCREW

14

205-00-71510

PLATE¤ OPERATING

15

205-966-1180

PLATE¤ MARK PF5

|15

205-966-2470

PLATE¤ MARK PF5LC

16

205-966-1170

PLATE¤ MARK

17

205-00-71110

PLATE¤ MARK

18

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

19

205-966-1170

PLATE¤ MARK PF5

|19

205-00-71240

PLATE¤ MARK PF5LC

|19

205-966-1170

PLATE¤ MARK PF5LC

20

205-966-1180

PLATE¤ MARK PF5

|20

205-966-2470

PLATE¤ MARK PF5LC

21

205-00-73360

PLATE¤ OPERATING

22

09690-50500

PLATE¤ MARK

23

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

24

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

25

205-00-71470

PLATE¤ OPERATING

26

205-00-71480

PLATE¤ OPERATING

27

205-00-63230

PLATE¤ CAUTION

28

09668-00100

PLATE¤ SAFETY

29

205-00-65150

PLATE¤ CAUTION

30

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

31

205-00-71810

PLATE

32

205-00-71291

PLATE¤ OPERATING

33

205-00-71350

PLATE¤ OPERATING

34

205-00-65120

PLATE¤ CAUTION

35

205-00-65190

PLATE¤ CAUTION

36

205-00-71560

PLATE¤ CAUTION

37

205-00-52192

PLATE¤ CAUTION

38

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

39

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

40

205-966-7970

PLATE¤ CAUTION PF5

|40

205-966-2460

PLATE¤ CAUTION PF5LC

41

09173-00100

PLATE¤ SAFETY

42

205-00-63250

PLATE¤ CAUTION

43

205-966-7920

COVER

44

205-54-72350

CLIP ASS'Y

45

205-00-71340

PLATE¤ OPERATING

46

205-966-1160

PLATE

47

205-966-7960

PLATE¤ OPERATING

48

205-966-7940

PLATE¤ OPERATING

49

205-966-7930

PLATE¤ OPERATING

50

207-00-14250

PLATE¤ INSTRUCTION

51

205-966-7950

PLATE¤ CAUTION

52

09699-00000

PLATE¤ CAUTION

53

205-966-7990

PLATE

54

205-966-1150

PLATE¤ MARK

55

205-966-1140

PLATE¤ MARK

56

205-966-1220

PLATE

Выбрано товаров: 64
