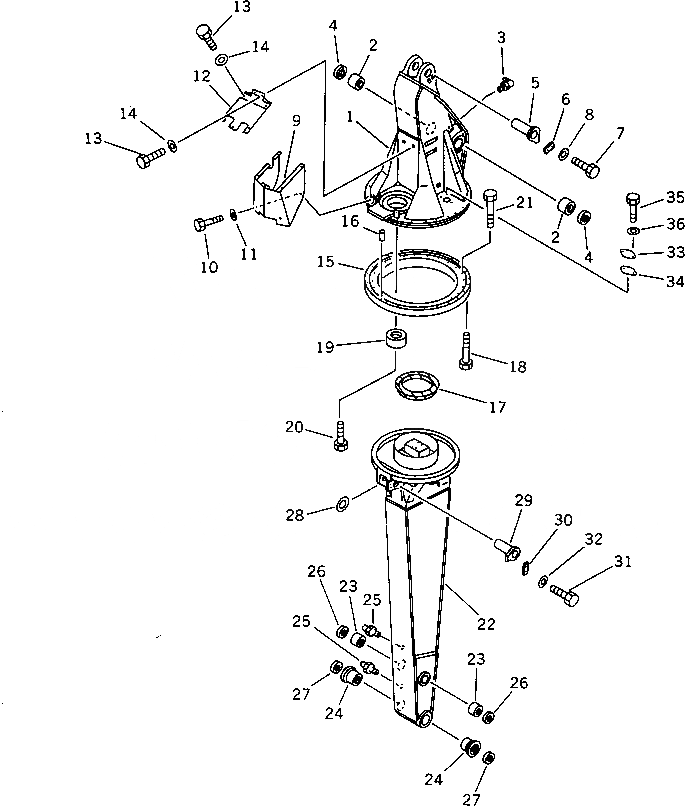

Запчасти Komatsu PF5-1 РУКОЯТЬ РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

205-966-0021

ARM ASS'Y

|1

205-966-0020

ARM ASS'Y

1

ARM,FIRST

|1

ARM,FIRST

2

205-70-66550

BUSHING

3

07020-00900

FITTING,GREASE

4

07145-00090

SEAL,DUST

5

205-70-71320

PIN

6

205-70-66580

PLATE

7

01010-51235

BOLT

8

01643-31232

WASHER

9

205-966-5262

COVER

10

01010-51220

BOLT

11

01643-31232

WASHER

12

205-966-7411

COVER

13

01010-51225

BOLT

|13

01010-51220

BOLT

14

01643-31232

WASHER

15

205-966-7112

CIRCLE,SWING

|15

205-966-7111

CIRCLE,SWING

16

04020-01842

PIN,DOWEL

|16

04020-01842

PIN,DOWEL

17

205-966-7260

SEAL

18

01011-52210

BOLT

19

205-966-7520

PINION

|19

23S-26-11121

PINION

20

01010-52080

BOLT

21

01011-52210

BOLT

|22

205-966-0031

ARM ASS'Y

|22

205-966-0030

ARM ASS'Y

22

ARM,SECOND

|22

ARM,SECOND

23

21K-70-12170

BUSHING

24

205-70-72130

BUSHING

25

07020-00000

FITTING,GREASE

26

21K-70-12180

SEAL,DUST

27

205-70-62150

SEAL,DUST

28

203-70-24170

SPACER¤ 1.0MM

29

205-70-71190

PIN

30

205-70-66580

PLATE

31

01010-51235

BOLT

32

01643-31232

WASHER

33

203-46-31131

COVER

34

203-46-31181

GASKET

35

01010-51230

BOLT

36

01643-31232

WASHER
