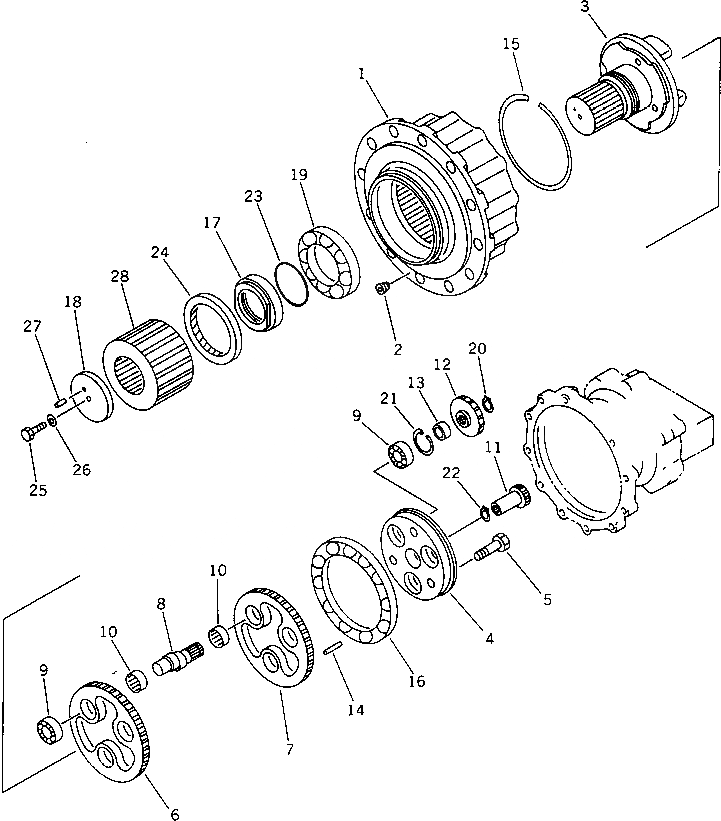

Запчасти Komatsu PF5-1 МОТОР ПОВОРОТА (/)(№9-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

205-966-5903

SWING MOTOR ASS'Y

|1

205-966-5902

SWING MOTOR ASS'Y

|1

205-966-5901

SWING MOTOR ASS'Y

|1

TZ902S1000-00

SWING MACHINERY A.

1

TZ902S1001-00

HUB ASS'Y

2

TZGM1-2

PLUG

|3

TZ902S1102-00

GEAR ASS'Y

|3

TZ902S1131-00

SPINDLE ASS'Y

3

SPINDLE

4

FLANGE

5

TZ800A1019-00

BOLT

|6

TZ900A1104-00

RV GEAR ASS'Y

|6

TZ900A1204-00

RV GEAR KIT

6

RV GEAR

7

RV GEAR

8

TZ900A1009-00

SHAFT

9

TZ860A1022-00

BEARING,ROLLER

10

TZ911A1023-00

BEARING

11

TZ901S1006-00

GEAR,INPUT

12

TZ901S1107-00

SPUR GEAR KIT

|12

SPUR GEAR ASS'Y

13

TZ860A1014-00

PIECE

14

TZ900A1017-00

PIN

15

TZ900S1020-00

RING

16

TZ850A1021-00

BEARING,BALL

17

TZ900S1024-00

NUT

18

TZ900S1026-00

PLATE

19

TZ900S1032-00

BEARING,ROLLER

20

04064-02512

RING,SNAP

21

TZ860A1013-00

SNAP RING SET

22

04064-01710

RING,SNAP

23

TZJW1516-G16-9

O-RING (KIT)

24

TZTC135-165-14

SEAL,OIL (KIT)

25

01010-62085

BOLT

26

01643-32060

WASHER

27

04020-00514

PIN

28

23S-26-11121

PINION
