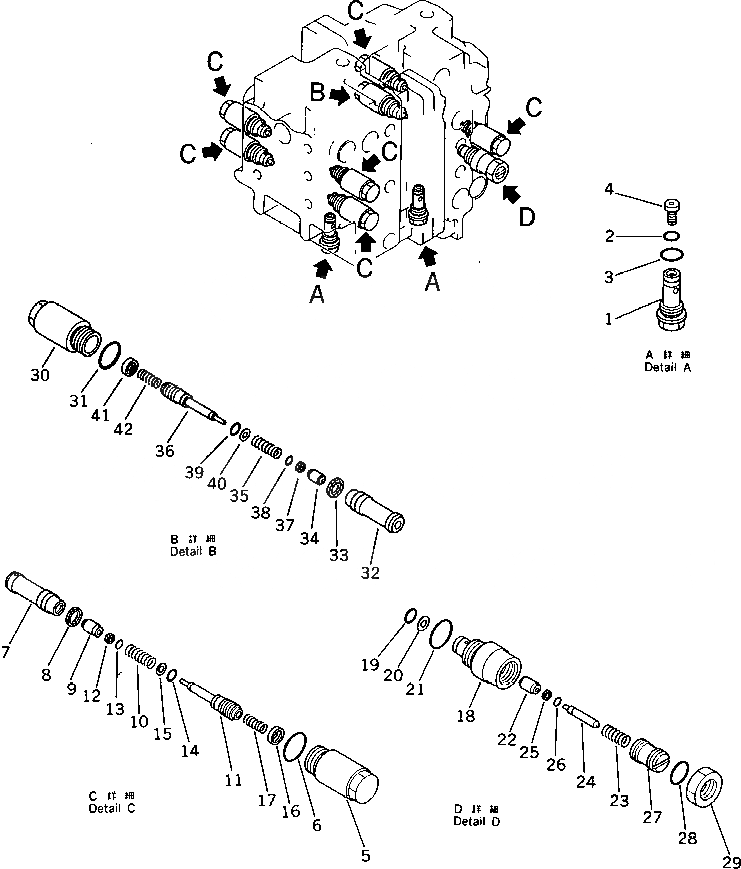

Запчасти Komatsu PF5-1 УПРАВЛЯЮЩ. КЛАПАН (7/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-12506

CONTROL VALVE ASS'Y

|1

709-79-12505

CONTROL VALVE ASS'Y

|1

709-79-12504

CONTROL VALVE ASS'Y

|1

709-79-12503

CONTROL VALVE ASS'Y

|1

709-79-12502

CONTROL VALVE ASS'Y

|1

709-79-12501

CONTROL VALVE ASS'Y

|1

709-79-12500

CONTROL VALVE ASS'Y

|1

709-70-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|5

709-70-61201

VALVE ASS'Y

|5

709-70-61200

VALVE ASS'Y

5

700-80-62310

SLEEVE

6

07002-03034

O-RING

7

VALVE

8

SEAL

9

POPPET

10

SPRING

11

PISTON

12

SEAL

13

O-RING

14

O-RING

15

RING,BACK-UP

16

NUT

|16

NUT

17

700-80-62250

SPRING

|18

709-70-62200

VALVE ASS'Y

18

SLEEVE

19

700-22-11410

O-RING

20

700-80-64220

RING,BACK-UP

21

07002-03034

O-RING

22

POPPET

23

SPRING

24

PISTON

25

SEAL

26

O-RING

27

SCREW

28

O-RING

29

NUT

|30

709-70-61601

VALVE ASS'Y

|30

709-70-61600

VALVE ASS'Y

30

700-80-62310

SLEEVE

31

07002-03034

O-RING

32

VALVE

33

SEAL

34

POPPET

35

SPRING

36

PISTON

37

SEAL

38

O-RING

39

O-RING

40

RING,BACK-UP

41

NUT

|41

NUT

42

700-80-62250

SPRING
