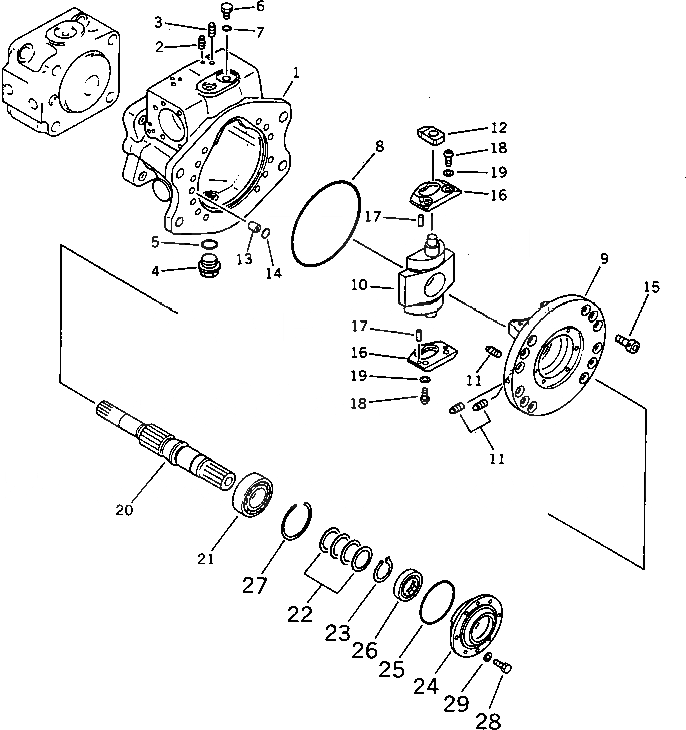

Запчасти Komatsu PF3W-1 ГИДР. НАСОС.¤ ПЕРЕДН. (/) (С OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-23-01070

PUMP ASS'Y (HPV55+55)

|1

708-23-11101

PUMP SUB ASS'Y

|1

708-23-00340

CASE ASS'Y,FRONT

1

CASE,FRONT

2

PLUG

3

PLUG

4

07044-12412

PLUG

5

07002-02434

O-RING

6

720-68-19870

PLUG

7

07002-01223

O-RING

8

706-73-42370

O-RING

|9

708-23-00360

CRADLE ASS'Y

9

CRADLE,FRONT

10

CAM,CAM

11

PLUG

12

708-23-14120

SLIDER

13

708-23-12330

JOINT

14

07000-12015

O-RING

15

708-25-12350

BOLT

16

708-23-12340

PLATE

17

708-23-12370

PIN

18

708-23-12350

SCREW

19

01643-30823

WASHER

20

708-23-12711

SHAFT

21

708-23-12751

BEARING

22

708-23-05010

WASHER KIT

|22

WASHER¤ 2.60MM

|22

WASHER¤ 2.70MM

|22

WASHER¤ 2.80MM

|22

WASHER¤ 2.90MM

23

708-23-12840

RING,SNAP

24

708-23-12851

HOUSING

25

07000-02065

O-RING

26

708-23-12860

SEAL,OIL

27

708-23-12660

RING

28

01010-30616

BOLT

29

01643-30623

WASHER
