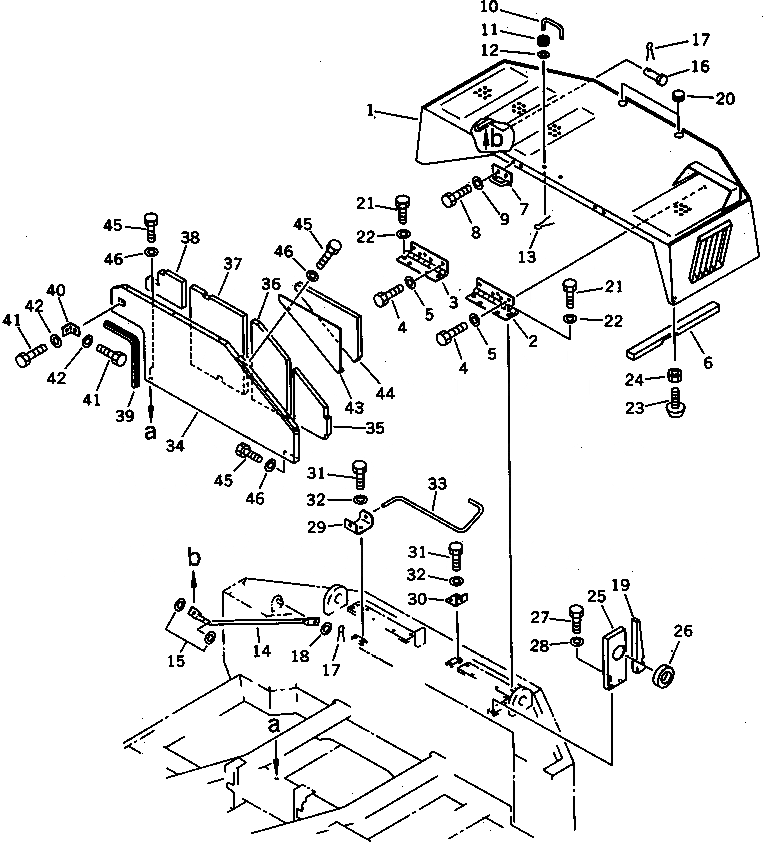

Запчасти Komatsu PF3W-1 MACHINERY ОБСТАНОВКА (/) ЧАСТИ КОРПУСА

|1

22C-54-00010

MACHINE CAB ASS'Y

1

22C-54-12100

HOOD

2

203-54-44950

HINGE,L.H.

3

203-54-44960

HINGE,R.H.

4

01010-51020

BOLT

5

01643-31032

WASHER

6

20D-54-41431

CUSHION

7

21K-54-26320

BRACKET

8

01010-51025

BOLT

9

01643-31032

WASHER

10

20G-54-11590

BAR

11

08037-01008

GROMMET

12

01643-31032

WASHER

13

04050-12020

PIN,COTTER

14

20D-54-41480

STAY

15

175-54-88110

WASHER

16

04205-11035

PIN

17

04050-13020

PIN,COTTER

18

01641-21016

WASHER

19

20D-54-41542

CUSHION

20

09414-00053

CAP,CAP

21

01010-51020

BOLT

22

144-854-1890

WASHER

23

201-54-21360

CUSHION

24

01580-10504

NUT

25

20D-54-41372

PLATE

26

20D-54-41441

CUSHION

27

01010-51020

BOLT

28

01643-31232

WASHER

29

20D-54-41570

PLATE

30

203-54-42271

PLATE

31

01010-51020

BOLT

32

01643-31032

WASHER

33

21K-54-26250

BAR,L.H.

34

22C-54-12130

COVER

35

20D-54-42140

SHEET

36

20D-54-42130

SHEET

37

20D-54-42150

SHEET

38

22C-54-12150

SHEET

39

09412-00006

SEAL

40

203-54-42780

PLATE

41

01010-51020

BOLT

42

01643-31032

WASHER

43

20D-54-44190

PLATE

44

20D-54-44210

SHEET

45

01010-51020

BOLT

46

01643-31032

WASHER
