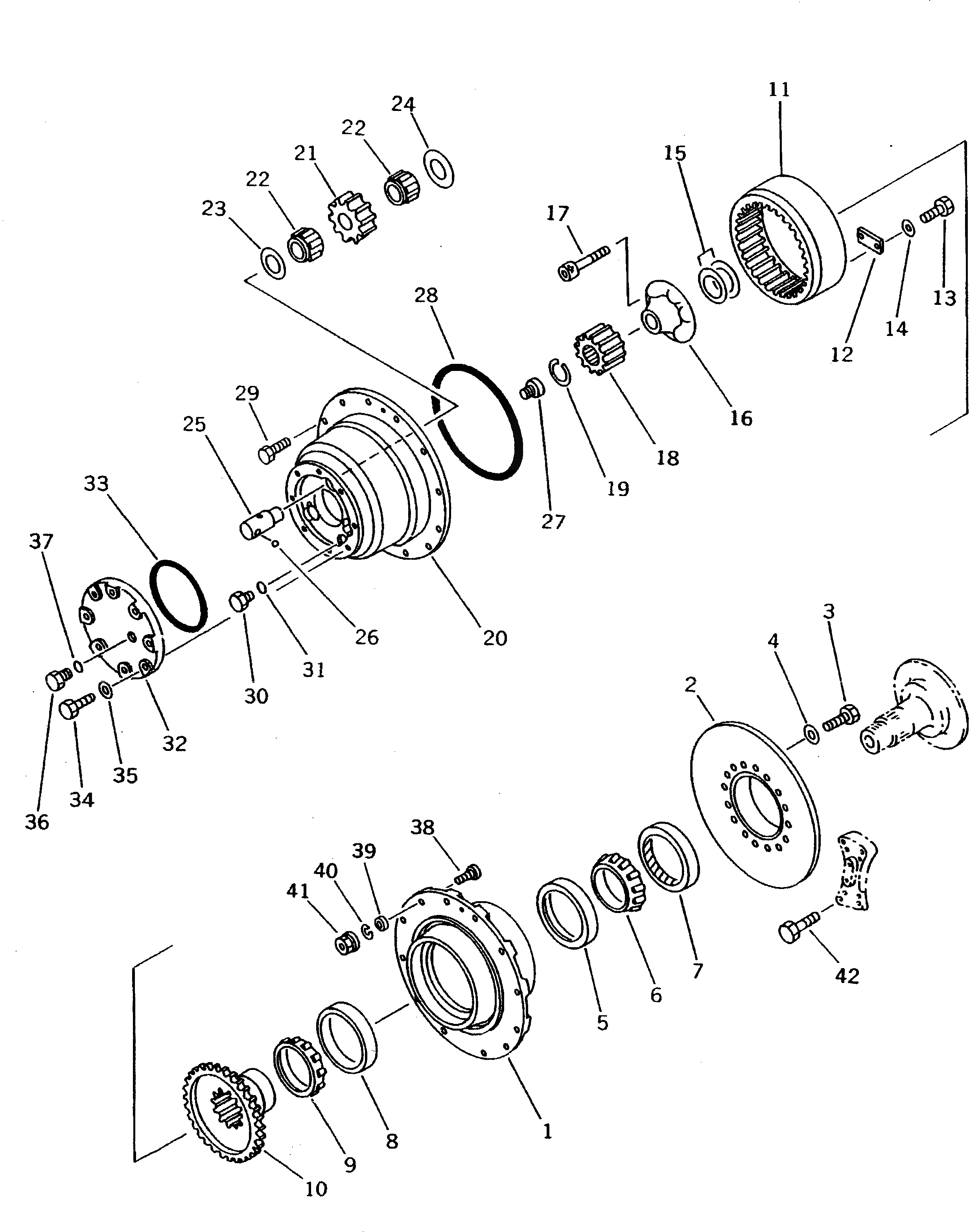

Запчасти Komatsu PF3W-1 КОНЕЧНАЯ ПЕРЕДАЧА ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

20D-22-40010

FRONT AXLE ASS'Y

|1

20D-22-49010

REAR AXLE ASS'Y

1

20D-22-42710

HUB

2

20D-22-43980

DISC

3

01010-61640

BOLT

4

01643-31645

WASHER

5

20G-22-12340

CUP,BEARING

6

20G-22-12330

CONE,BEARING

7

20G-22-12750

SEAL,OIL

8

22X-22-12870

CUP,BEARING

9

22X-22-12860

CONE,BEARING

10

20D-22-42310

HUB,RING GEAR

11

20D-22-42110

GEAR,RING

12

20D-22-42130

PLATE,LOCK

13

01010-30816

BOLT

14

01643-30823

WASHER

15

20G-22-12440

SHIM¤ 0.10MM

|15

20G-22-12450

SHIM¤ 0.15MM

|15

20G-22-12460

SHIM¤ 0.20MM

|15

20G-22-12470

SHIM¤ 0.50MM

16

20G-22-12431

RETAINER

17

01252-31045

BOLT

18

20G-22-22420

GEAR,SUN

19

04064-04018

RING,SNAP

20

20D-22-42610

CARRIER

21

20G-22-22210

GEAR,PLANETARY

22

130-09-14330

BEARING

23

20G-22-22270

WASHER

24

20D-22-42260

WASHER

25

20D-22-42650

SHAFT

26

04260-01270

BALL

27

20D-22-42630

BUTTON,THRUST

28

20D-22-42680

O-RING

29

01010-61020

BOLT

30

07040-11007

PLUG

31

07002-01023

O-RING

32

20D-22-42620

COVER

33

20D-22-42690

O-RING

34

01010-61025

BOLT

35

01643-31032

WASHER

36

07040-12414

PLUG

37

07002-02434

O-RING

38

20D-22-42720

BOLT

39

20G-22-12880

COLLAR

40

20G-22-12860

WASHER,SPRING

41

20G-22-12870

NUT

42

20G-32-21930

BOLT,12POINT
