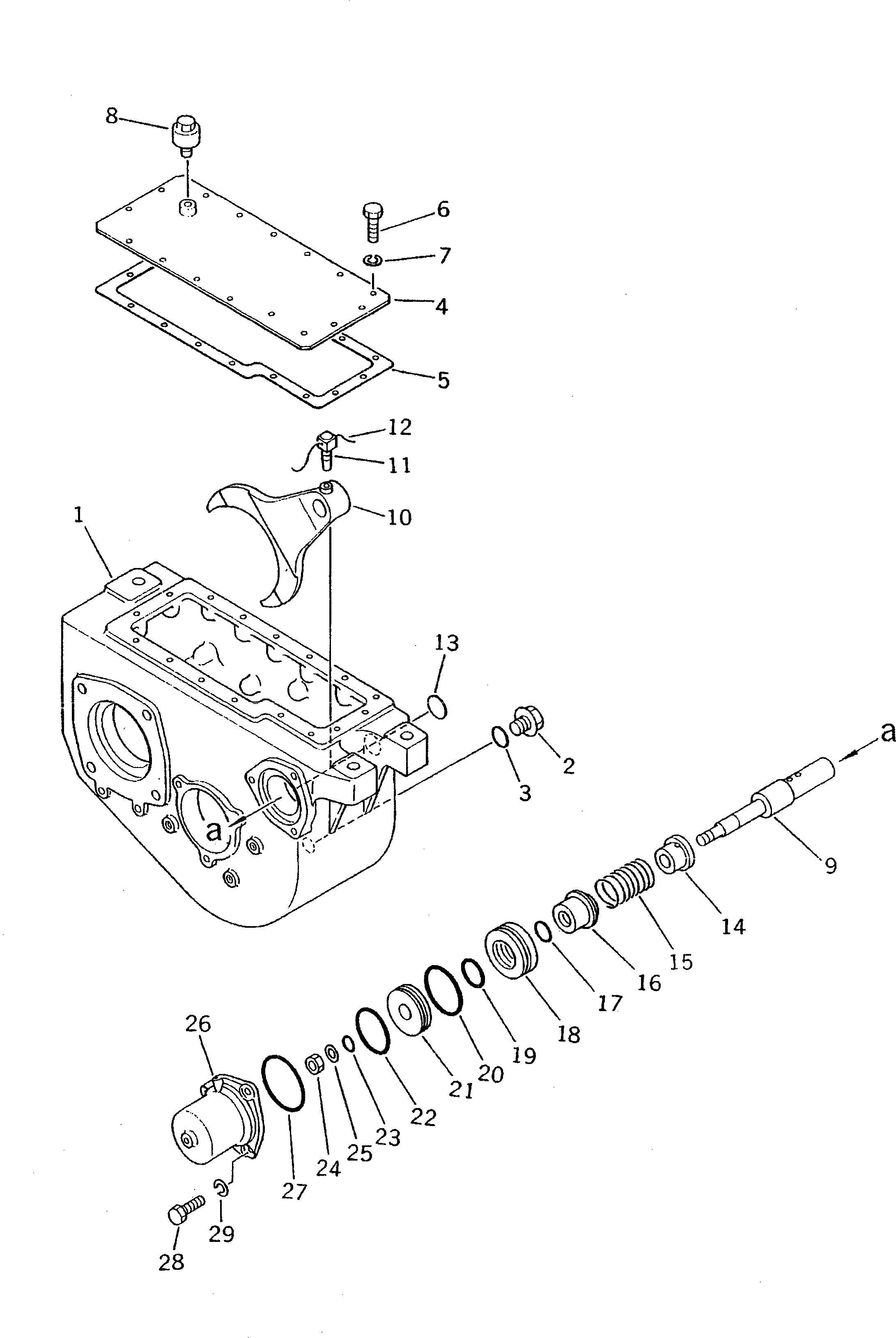

Запчасти Komatsu PF3W-1 ТРАНСМИССИЯ (/) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

20D-14-00023

TRANSMISSION ASS'Y

1

20D-14-41213

CASE

2

07044-12412

PLUG

3

07002-02434

O-RING

4

20D-14-41260

COVER

5

20G-14-11130

GASKET

6

01010-51030

BOLT

7

01602-21030

WASHER,SPRING

8

07030-00252

BREATHER

9

20G-14-13410

SHAFT

10

20G-14-13390

FORK

11

170-14-13222

SCREW

12

04059-01610

WIRE

13

07046-03520

PLUG

14

20G-14-13130

SPACER

15

20G-14-13440

SPRING

16

20G-14-13430

SPACER

17

07000-03025

O-RING

18

20G-14-13420

SPACER

19

07000-03045

O-RING

20

07000-02075

O-RING

21

20G-14-13171

PISTON

22

07000-05060

O-RING

23

07000-02014

O-RING

24

01598-01214

NUT

25

01643-31232

WASHER

26

20G-14-13181

CYLINDER

27

07000-02095

O-RING

28

01010-51030

BOLT

29

01602-21030

WASHER,SPRING
