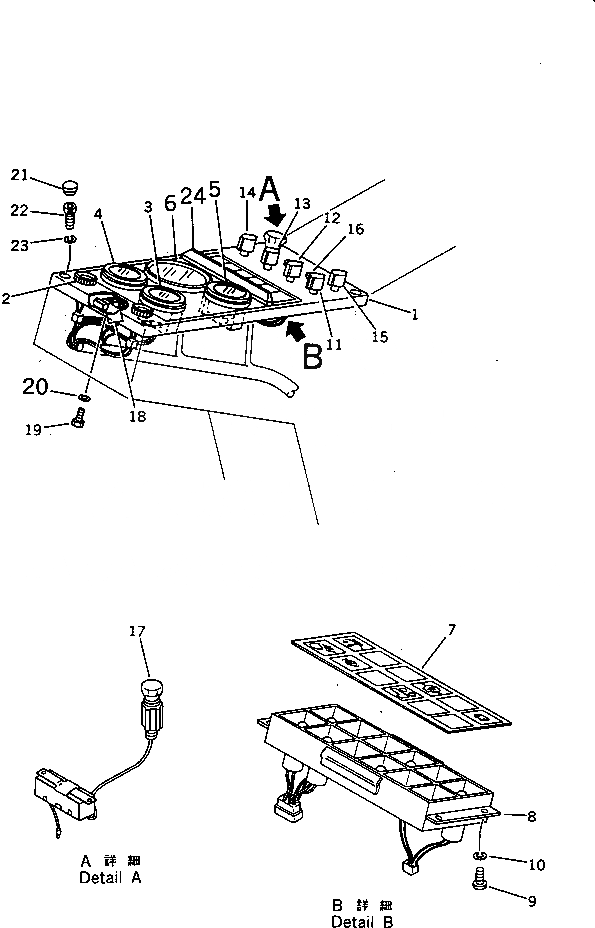

Запчасти Komatsu PF3W-1 ПАНЕЛЬ МОНИТОРА И КОМПОНЕНТЫ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20G-06-12112

PANEL

2

22W-06-13270

LAMP,LAMP

3

20D-68-12630

GAUGE,AIR PRESSURE

4

208-06-11280

GAUGE,WATER TEMPERATURE

5

195-06-23170

GAUGE,FUEL

6

20B-06-21210

TACHOMETER

7

22C-06-11140

PLATE

8

20D-06-41121

LAMP ASS'Y

|8

20G-06-12161

BRACKET

|8

21T-06-16620

LAMP ASS'Y

9

01220-40410

SCREW

10

01601-20410

WASHER,SPRING

11

20G-06-12330

SWITCH,WORK LAMP

|11

20G-06-12340

KNOB

|11

20G-06-12321

SWITCH

12

205-06-71321

SWITCH,HEATER

|12

205-06-71640

KNOB

|12

205-06-71380

SWITCH

13

205-06-71331

SWITCH,LAMP

|13

205-06-71650

KNOB

|13

205-06-71380

SWITCH

14

205-06-71690

SWITCH ASS'Y,WIPER

|14

205-06-71670

KNOB

|14

205-06-71390

SWITCH

15

20D-06-41160

SWITCH,MODE

|15

205-06-71630

KNOB

|15

205-06-71390

SWITCH

16

09415-00706

CAP

17

203-06-51120

LIGHTER,CIGARETTES

18

205-06-51290

CONDENSER

19

01010-50816

BOLT

20

01643-30823

WASHER

21

7861-21-1190

CAP

22

01252-40612

BOLT

23

01602-20619

WASHER,SPRING

24

22C-06-11150

SHEET
