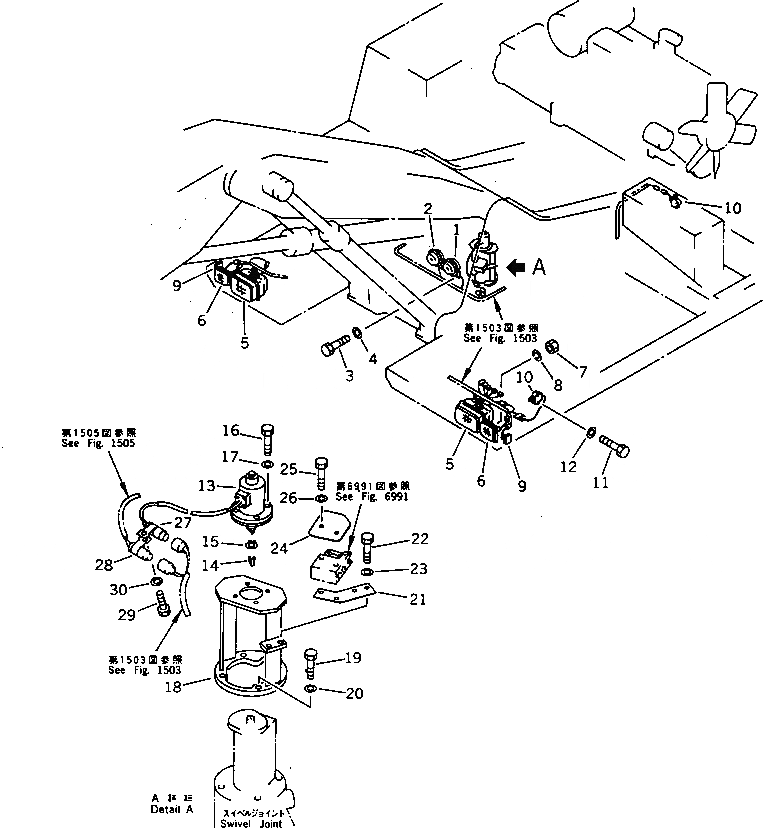

Запчасти Komatsu PF3W-1 ЭЛЕКТРИКА (/) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

08160-52400

HORN

2

205-06-64430

HORN

3

01010-50816

BOLT

4

01643-30823

WASHER

5

20G-06-13350

LAMP,HEAD

|5

20G-06-13360

BULB¤ 50/60W

6

20B-06-31110

LAMP ASS'Y,COMBINATION

7

01580-10504

NUT

8

01601-20513

WASHER,SPRING

9

20D-06-12430

LAMP ASS'Y,SIDE WINKER

10

22W-06-15861

SWITCH,LIMIT

11

01010-51030

BOLT

12

01643-31032

WASHER

13

7861-91-2700

SENSOR ASS'Y

14

142-43-13180

SPRING

15

04064-01610

RING,SNAP

16

01010-50825

BOLT

17

01643-30823

WASHER

18

22C-06-11180

BRACKET

19

01010-51040

BOLT

20

01643-31032

WASHER

21

22C-06-11190

PLATE

22

01010-50820

BOLT

23

01643-30823

WASHER

24

22C-06-11210

COVER

25

01010-50645

BOLT

26

01643-30623

WASHER

27

08052-12411

CLIP

28

08052-12711

CLIP

29

01010-51016

BOLT

30

01643-31032

WASHER
