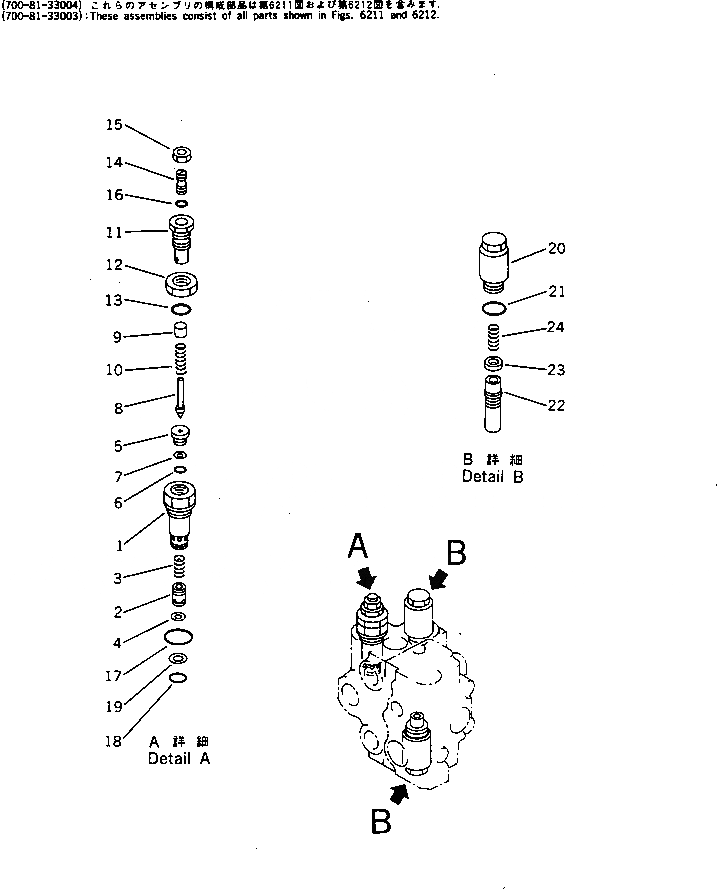

Запчасти Komatsu PF3W-1 УПРАВЛЯЮЩ. КЛАПАН (/) (ДЛЯ РУКОЯТИ ВРАЩЕНИЕ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-81-33004

CONTROL VALVE ASS'Y

|1

700-81-33003

CONTROL VALVE ASS'Y

|1

700-87-56000

VALVE ASS'Y,RELIEF

1

SLEEVE

2

VALVE

3

700-80-51390

SPRING

4

700-80-51350

RING,SNAP

5

700-80-51740

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

700-80-61190

POPPET

9

709-90-51260

RETAINER

10

709-20-51231

SPRING

11

700-80-51360

HOLDER

12

07239-12410

NUT

13

07002-02434

O-RING

14

700-80-51630

SCREW

15

01582-11411

NUT

16

07000-02011

O-RING

17

07002-03334

O-RING

18

700-13-31161

O-RING

19

700-80-51190

RING,BACK-UP

|20

700-81-81000

VALVE ASS'Y,SUCTION

20

SLEEVE

21

07002-03034

O-RING

22

VALVE

23

SEAL

24

700-80-62250

SPRING
