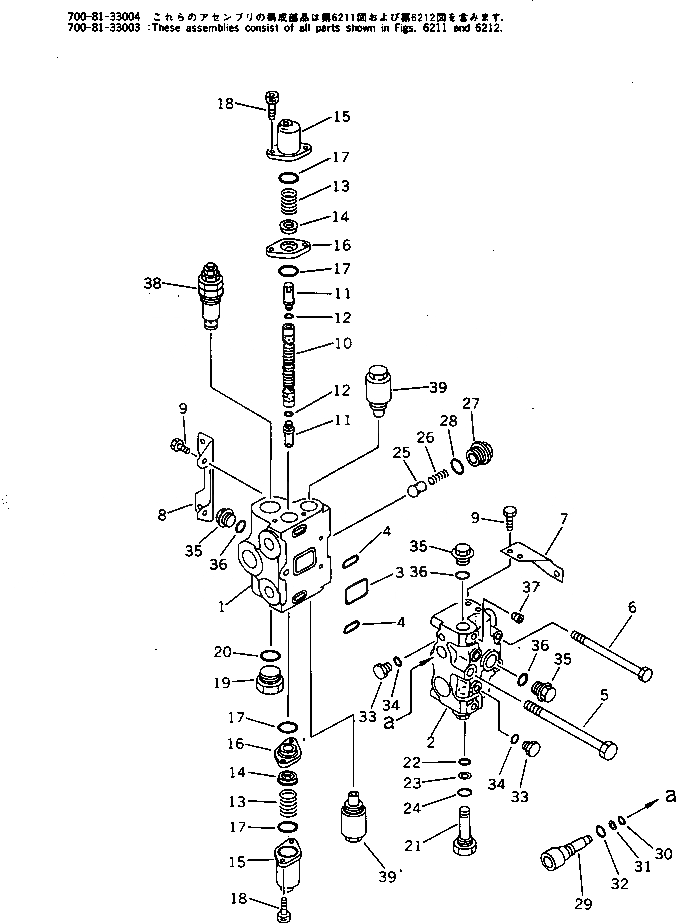

Запчасти Komatsu PF3W-1 УПРАВЛЯЮЩ. КЛАПАН (/) (ДЛЯ РУКОЯТИ ВРАЩЕНИЕ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-81-33004

CONTROL VALVE ASS'Y

|1

700-81-33003

CONTROL VALVE ASS'Y

1

BODY,VALVE

|1

BODY,VALVE

2

COVER,VALVE

3

07000-13050

O-RING

4

07000-03030

O-RING

5

700-82-11470

BOLT

6

700-82-11212

BOLT

7

700-84-13480

BRACKET

8

700-84-11330

BRACKET

9

01010-51020

BOLT

10

SPOOL

|10

SPOOL

11

700-84-13790

JOINT

12

07002-11223

O-RING

13

700-84-13770

SPRING

14

700-84-13781

RETAINER

15

700-84-12510

CASE

16

700-84-13490

PLATE

17

700-84-11240

O-RING

18

01252-30625

BOLT

19

07040-13316

PLUG

20

07002-03334

O-RING

21

709-74-91570

PLUG

22

700-22-11410

O-RING

23

700-80-64220

RING,BACK-UP

24

07002-02434

O-RING

25

700-42-31460

VALVE,CHECK

26

700-42-31470

SPRING

27

700-84-11320

PLUG

28

07002-13034

O-RING

29

709-74-91560

PLUG

30

700-22-11410

O-RING

31

700-80-64220

RING,BACK-UP

32

07002-02434

O-RING

33

07040-11409

PLUG

34

07002-01423

O-RING

35

700-22-11370

PLUG

36

07002-12434

O-RING

37

07043-70108

PLUG

38

700-87-56000

VALVE ASS'Y,RELIEF

39

700-81-81000

VALVE ASS'Y
