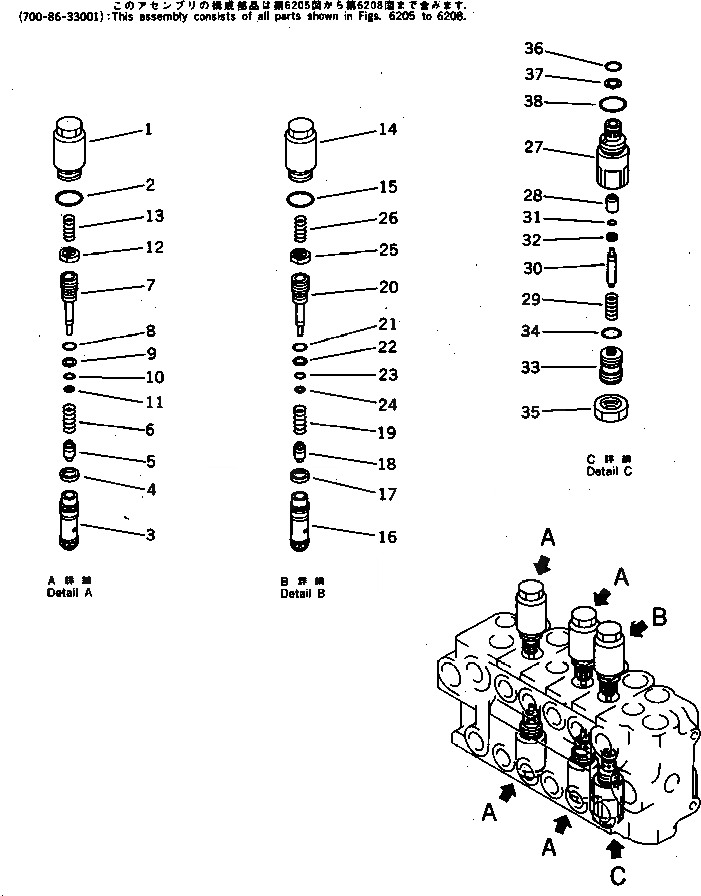

Запчасти Komatsu PF3W-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-33001

CONTROL VALVE ASS'Y,R.H.

|1

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

1

700-80-62310

SLEEVE

2

07002-03034

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

RING,BACK-UP

10

O-RING

11

SEAL

12

NUT

13

700-80-62250

SPRING

|14

700-81-63002

VALVE ASS'Y,SUCTION AND SAFETY

14

700-80-62310

SLEEVE

15

07002-03034

O-RING

16

VALVE

17

SEAL

18

POPPET

19

SPRING

20

PISTON

21

O-RING

22

RING,BACK-UP

23

O-RING

24

SEAL

25

NUT

26

700-80-62250

SPRING

|27

700-81-74001

VALVE ASS'Y,RELIEF

27

SLEEVE

28

POPPET

29

SPRING

30

PISTON

31

O-RING

32

SEAL

33

SCREW

34

O-RING

35

NUT

36

700-22-11410

O-RING

37

700-80-64220

RING,BACK-UP

38

07002-03034

O-RING
