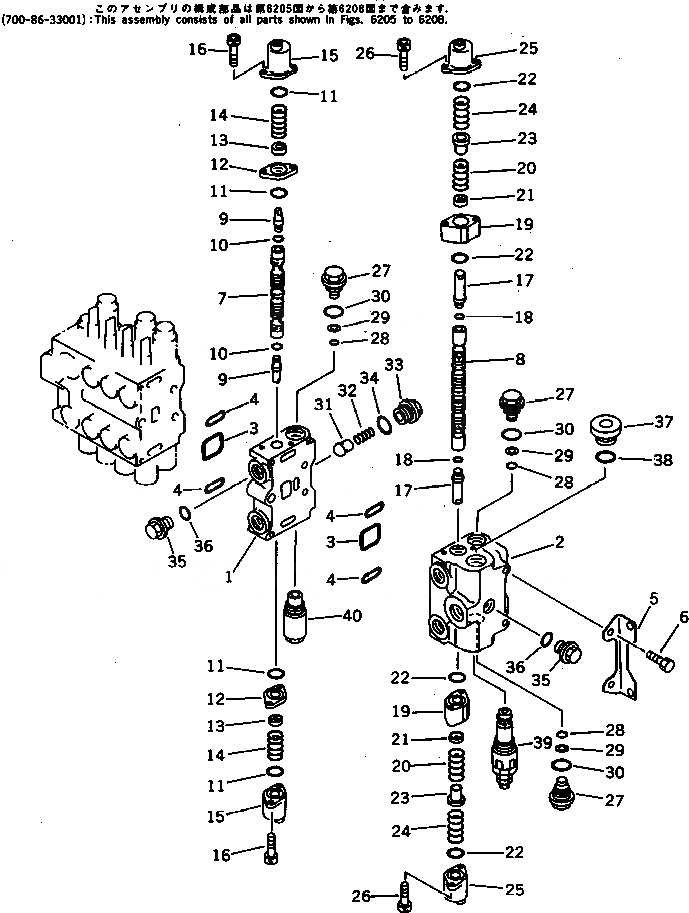

Запчасти Komatsu PF3W-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-33001

CONTROL VALVE ASS'Y,R.H.

1

BLOCK,VALVE

2

BODY,VALVE

3

07000-13050

O-RING

4

07000-03038

O-RING

5

700-84-11330

BRACKET

6

01010-51020

BOLT

7

SPOOL

8

SPOOL

9

700-84-13790

JOINT

10

07002-11223

O-RING

11

700-84-11240

O-RING

12

700-84-13490

PLATE

13

700-84-13781

RETAINER

14

700-84-13770

SPRING

15

700-84-12510

CASE

16

01252-30625

BOLT

17

700-84-14950

JOINT

18

07002-11223

O-RING

19

700-84-14931

PLATE

20

700-84-14910

SPRING

21

700-84-13781

RETAINER

22

700-84-11240

O-RING

23

700-84-14940

RETAINER

24

700-84-14920

SPRING

25

700-84-12510

CASE

26

01252-30650

BOLT

27

700-84-13960

PLUG

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

07002-03034

O-RING

31

700-42-31460

VALVE

32

700-42-31470

SPRING

33

700-84-11320

PLUG

34

07002-13034

O-RING

35

700-22-11370

PLUG

36

07002-12434

O-RING

37

07040-13316

PLUG

38

07002-13334

O-RING

39

700-87-58002

VALVE ASS'Y,MAIN RELIEF

40

700-81-81000

VALVE ASS'Y,SUCTION
