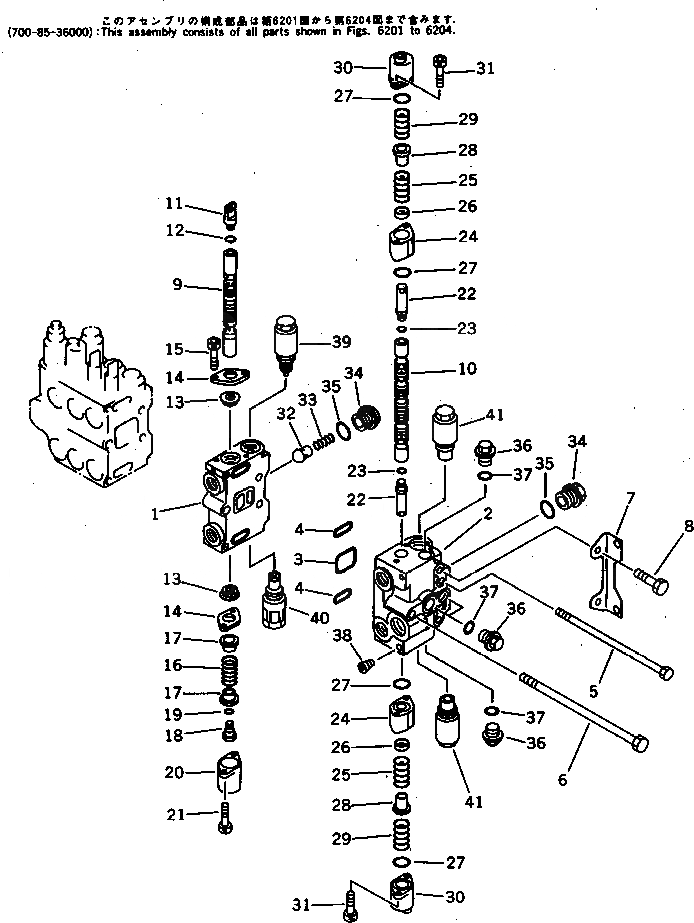

Запчасти Komatsu PF3W-1 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-36000

CONTROL VALVE ASS'Y,L.H.

1

BLOCK,VALVE

2

COVER,VALVE

3

07000-13050

O-RING

4

07000-03038

O-RING

5

700-85-1111

BOLT

6

700-84-13210

BOLT

7

700-84-11330

BRACKET

8

01010-51020

BOLT

9

SPOOL

10

SPOOL

11

700-84-11870

JOINT

12

07002-11223

O-RING

13

700-84-13910

SEAL

14

700-84-13891

PLATE

15

01252-30612

BOLT

16

700-84-11650

SPRING

17

700-84-13721

RETAINER

18

700-84-11881

PLUG

19

07002-11223

O-RING

20

700-84-11390

COVER

21

01252-30625

BOLT

22

700-84-14950

JOINT

23

07002-11223

O-RING

24

700-84-14931

PLATE

25

700-84-14910

SPRING

26

700-84-13781

RETAINER

27

700-84-11240

O-RING

28

700-84-14940

RETAINER

29

700-84-14920

SPRING

30

700-84-12510

CASE

31

01252-30650

BOLT

32

700-42-31460

VALVE

33

700-42-31470

SPRING

34

700-84-11320

PLUG

35

07002-13034

O-RING

36

709-30-62150

PLUG

37

07002-02034

O-RING

38

07043-70108

PLUG

39

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

40

700-81-71001

SAFETY VALVE ASS'Y,SAFETY

41

700-81-81000

VALVE ASS'Y,SUCTION
