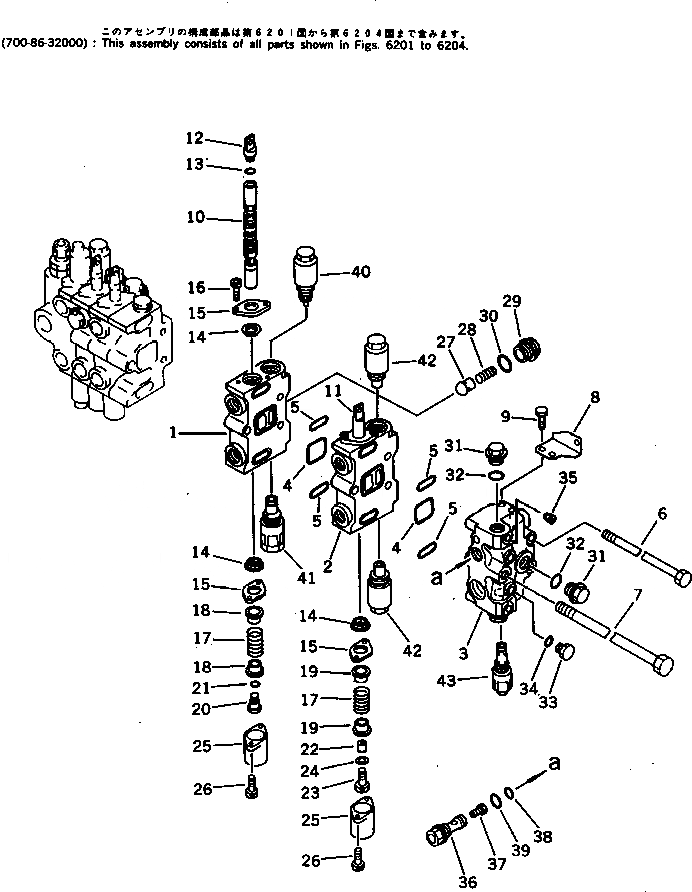

Запчасти Komatsu PF3-1 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-32000

VALVE ASS'Y,CONTROL

1

BLOCK,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-13050

O-RING

5

07000-03038

O-RING

6

700-87-11110

BOLT

7

700-87-11120

BOLT

8

700-84-13830

BRACKET

9

01010-51020

BOLT

10

SPOOL

11

SPOOL

12

700-84-11870

JOINT

13

07002-11223

O-RING

14

700-84-13910

SEAL

15

700-84-13891

PLATE

16

01252-30612

BOLT

17

700-84-11650

SPRING

18

700-84-13721

RETAINER

19

700-84-13711

RETAINER

20

700-84-11881

PLUG

21

07002-11223

O-RING

22

700-84-11641

COLLAR

23

01252-30830

BOLT

24

01643-30823

WASHER

25

700-84-11390

COVER

26

01252-30625

BOLT

27

700-42-31460

VALVE

28

700-42-31470

SPRING

29

700-84-11320

PLUG

30

07002-13034

O-RING

31

700-22-11370

PLUG

32

07002-12434

O-RING

33

07040-11409

PLUG

34

07002-01423

O-RING

35

07043-70108

PLUG

|36

700-84-13860

ORIFICE ASS'Y

36

700-84-13840

ORIFICE

37

700-84-13850

SENSOR

38

07000-02014

O-RING

39

07002-02434

O-RING

40

700-84-61002

VALVE ASS'Y,SUCTION AND SAFETY

41

700-81-71001

SAFETY VALVE ASS'Y,SAFETY

42

700-81-81000

VALVE ASS'Y,SUCTION

43

700-26-53000

VALVE ASS'Y,RELIEF
