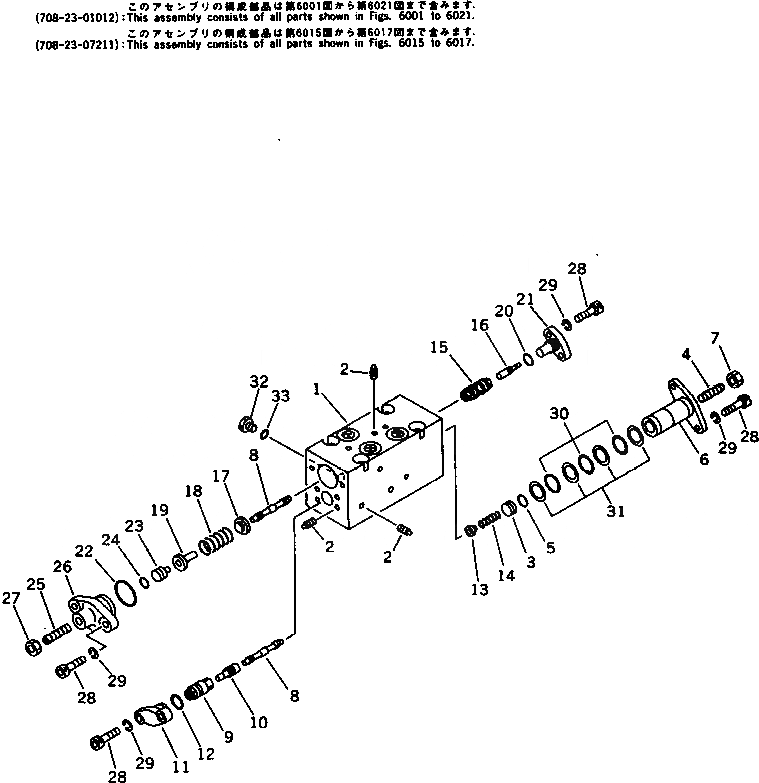

Запчасти Komatsu PF3-1 CUT OFF И NEGATIVE УПРАВЛЯЮЩ. КЛАПАН¤ ЗАДН. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-23-01012

PUMP ASS'Y,(HPV 55+55)

|1

708-23-07211

SERVO VALVE ASS'Y,REAR

|1

708-23-07611

VALVE ASS'Y,CO AND NC

|1

708-23-07032

BODY ASS'Y

1

BODY

2

EXPANDER

3

708-25-17420

PLUG

4

708-25-17430

SCREW

5

07000-02010

O-RING

6

708-25-17131

COVER

7

01580-10806

NUT

8

708-25-17141

SPOOL

9

708-25-17150

SLEEVE

10

708-25-17160

PISTON

11

708-25-17170

COVER

12

07000-02014

O-RING

13

708-25-17180

SEAT

14

708-25-17190

SPRING

15

708-25-17211

SLEEVE

16

708-25-17220

PISTON

17

708-25-17370

SEAT

18

708-25-17250

SPRING

19

708-25-17260

SEAT

20

07000-02012

O-RING

21

708-25-17230

COVER

22

07000-03028

O-RING

23

708-25-17410

PLUG

24

07000-01009

O-RING

25

708-25-15340

SCREW

26

708-25-17350

COVER

27

01580-10806

NUT

28

708-25-15320

BOLT

29

01602-20619

WASHER,SPRING

30

07000-12021

O-RING

31

07001-02021

RING,BACK-UP

32

07040-11007

PLUG

33

07002-01023

O-RING
