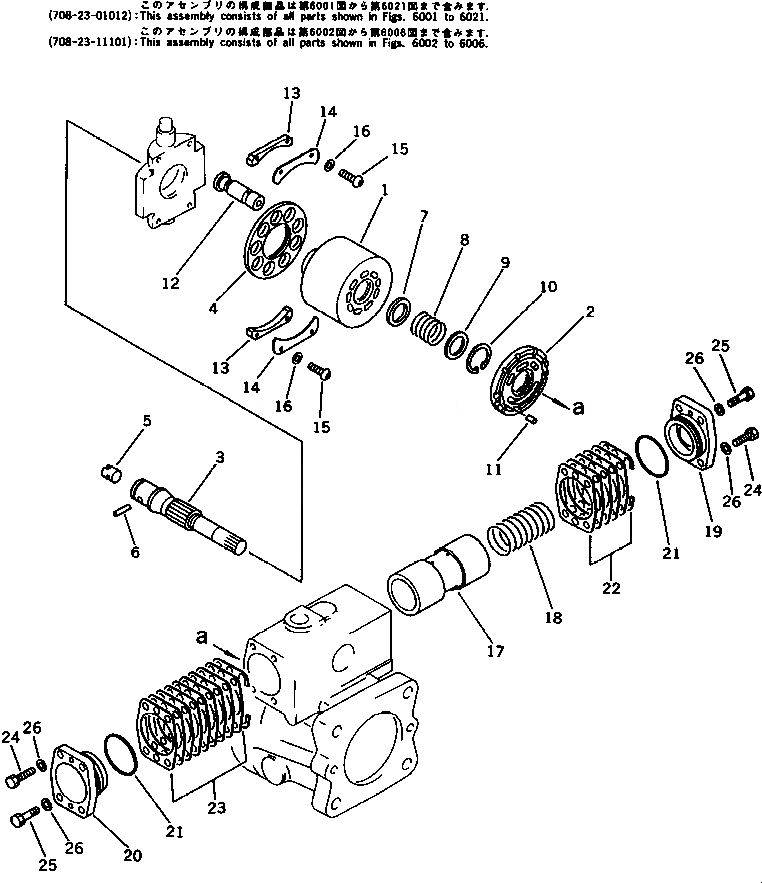

Запчасти Komatsu PF3-1 ГИДР. НАСОС.¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-23-01012

PUMP ASS'Y,(HPV 55+55)

|1

708-23-11101

.PUMP SUB ASS'Y,HYDRAULIC

|1

708-23-00020

..BLOCK ASS'Y

1

...CYLINDER BLOCK

2

...PLATE,VALVE

3

708-23-12720

..SHAFT,REAR

4

708-23-13342

..RETAINER

5

708-23-12930

..COUPLING

6

708-23-12940

..PIN

7

708-23-13130

..WASHER

8

708-23-13140

..SPRING

9

708-23-13120

..WASHER

10

04065-03815

..RING,SNAP

11

720-68-19610

..PIN

12

708-23-13311

..PISTON ASS'Y

13

708-23-05041

SPACER KIT

|13

...SPACER

|13

...SPACER

|13

...SPACER

14

708-23-13431

..RETAINER,BEARING

15

708-23-13460

..SCREW

16

01643-30623

..WASHER

17

708-23-14110

..PISTON

18

708-23-14130

..SPRING

19

708-23-14140

..CAP

20

708-23-14150

..CAP

21

07000-02055

..O-RING

22

708-23-05080

..SHIM KIT

|22

...SHIM

|22

...SHIM

|22

...SHIM

|22

...SHIM

23

708-23-05090

..SHIM KIT

|23

...SHIM

|23

...SHIM

|23

...SHIM

|23

...SHIM

24

01016-50840

..BOLT

25

01010-30830

..BOLT

26

01643-30823

..WASHER
