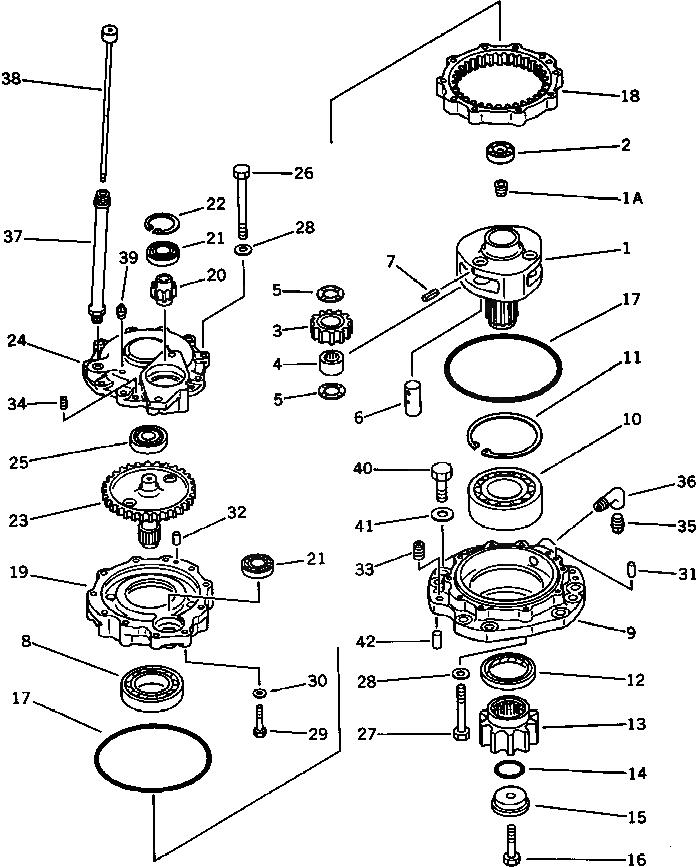

Запчасти Komatsu PF3-1 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|1

203-26-00101

SWING MACHINERY A.

|1

203-26-00050

CARRIER ASS'Y

1

CARRIER

2

07043-00415

PLUG

3

06040-06007

BEARING

4

203-26-41170

GEAR

5

203-26-41240

BEARING

6

203-26-41250

WASHER,THRUST

7

203-26-41231

SHAFT

8

04025-00832

PIN,SPRING

9

20G-26-11260

BEARING

10

20G-26-11110

CAGE

11

06030-22317

BEARING

12

04071-00180

RING,SNAP

13

07012-00100

SEAL,OIL

14

203-26-41191

GEAR

15

07000-05065

O-RING

16

20G-26-11250

HOLDER

17

01011-52030

BOLT

18

203-26-41220

O-RING

19

203-26-41180

GEAR

20

203-26-41120

CASE

21

203-26-41150

GEAR

22

06040-06207

BEARING

23

04065-07225

RING,SNAP

24

203-26-41161

GEAR

25

203-26-41130

COVER

26

06030-21307

BEARING

27

01011-51450

BOLT

28

01011-51410

BOLT

29

01643-31445

WASHER

30

01010-51255

BOLT

31

01643-31232

WASHER

32

04020-01434

PIN,DOWEL

33

04020-01024

PIN,DOWEL

34

07049-02025

PLUG

35

07049-01215

PLUG

36

07042-30617

PLUG

37

07323-30600

ELBOW

38

20G-26-11310

FILLER

39

20G-26-11320

GAUGE

40

07042-30108

PLUG

41

01010-52060

BOLT

42

01643-32060

WASHER,DOWEL

43

113-15-11330

PIN

|43

04020-01638

PIN,DOWEL
