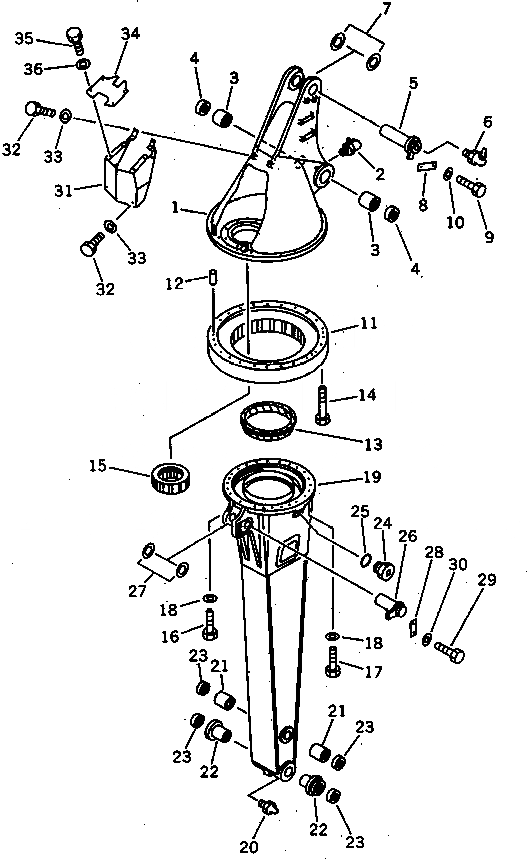

Запчасти Komatsu PF3-1 РУКОЯТЬ РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

22B-70-X2000

ARM GROUP

|1

22B-70-00030

ARM ASS'Y

1

ARM,FIRST

2

07020-00900

FITTING,GREASE

3

203-70-42190

BUSHING

4

07145-00070

SEAL,DUST

5

203-70-42121

PIN

6

07020-00675

FITTING,GREASE

7

203-70-41470

SPACER¤ 2.0MM

|7

203-70-41460

SPACER¤ 1.0MM

8

205-70-66580

PLATE

9

01010-51230

BOLT

10

01643-31232

WASHER

11

202-966-7501

CIRCLE,SWING

12

04020-01842

PIN,DOWEL

13

202-966-7280

SEAL

14

01011-52225

BOLT

15

202-966-7560

PINION

16

202-966-7580

BOLT

17

01010-52275

BOLT

|17

01010-52270

BOLT

18

01643-32260

WASHER

|19

22B-70-00040

ARM ASS'Y

19

ARM,SECOND

20

07020-00000

FITTING,GREASE

21

203-70-33150

BUSHING

22

203-70-42181

BUSHING

23

203-70-33210

SEAL

24

202-966-7240

PLUG

25

07002-05234

O-RING

26

203-70-42131

PIN

27

203-70-41160

SPACER¤ 1.0MM

|27

203-70-41160

SPACER¤ 1.0MM

28

205-70-66580

PLATE

29

01010-51230

BOLT

30

01643-31232

WASHER

31

202-966-7321

COVER

32

01010-51220

BOLT

33

01643-31232

WASHER

34

202-966-7291

PLATE

35

01010-51220

BOLT

36

01643-31232

WASHER
