Запчасти Komatsu PF3-1 МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

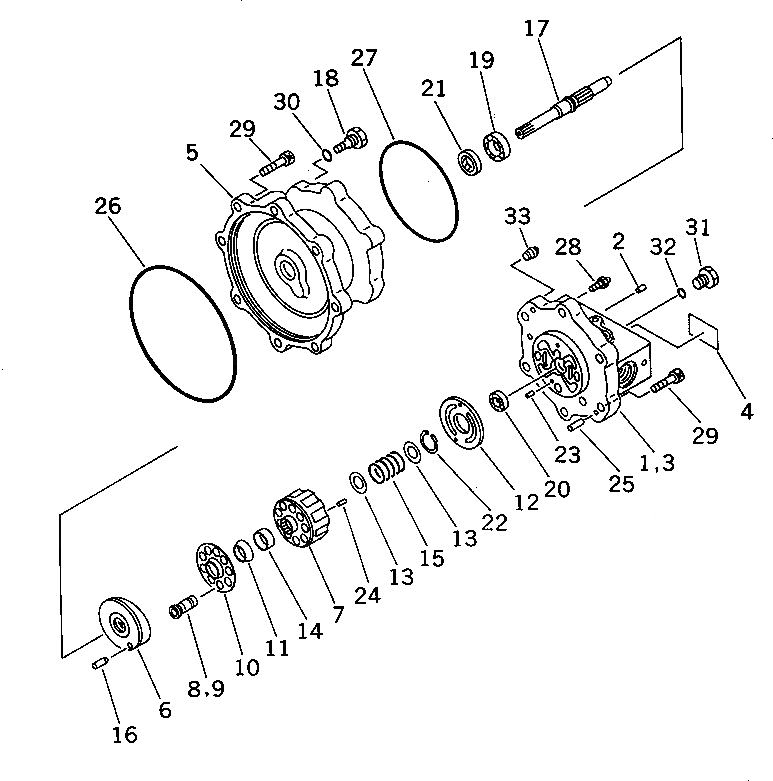

Схема запчастей Komatsu PF3-1 - МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

202-966-4911

MOTOR ASS'Y,SWING (TZ504S000001-A)

|1

202-966-4910

MOTOR ASS'Y,SWING (TZ504S000000-A)

|1

TZ504S200001-A

MOTOR ASS'Y

|1

TZ504S200000-A

MOTOR ASS'Y

|1

TZ501S2101-02

REAR FLANGE KIT

1

TZ501S2001-02

FLANGE

2

TZ501S2033-00

ORIFICE

3

TZMB700-060

PLUG

4

TZ850A0006-00

PLATE¤ NAME

5

TZ504S2002-00

CASE

6

TZ550A200300-A

PLATE,SWASH

7

TZ550A2004-00

BLOCK,CYLINDER

|8

TZ550A2105-00

PISTON SHOE ASS'Y

|8

PISTON ASS'Y

8

PISTON

9

SHOE

10

TZ550A2007-00

PLATE

11

TZ300A2008-00

BALL,THRUST

12

TZ550A2009-00

PLATE,TIMING

13

TZ300A2010-00

WASHER

14

TZ550A2011-00

WASHER KIT

15

TZ550A2014-00

SPRING

16

TZ300A2017-00

PIN

17

TZ501S2018-01

SHAFT

18

TZ501S2019-00

GAUGE,OIL

19

06000-06203

BEARING,BALL

20

06000-06001

BEARING,BALL

21

TZ15Z-17-35-8

SEAL,OIL (KIT)

22

TZIRTW-32

RING,SNAP

23

TZJB1354-4-10

PIN

24

TZJB1354-2-12

PIN

25

TZ1354-8-25

PIN

26

TZJW1516-G45-9

O-RING (KIT)

27

TZJW1516-G35-9

O-RING (KIT)

28

TZB-2101

BLEEDER

29

01252-31035

BOLT

30

07000-12014

O-RING (KIT)

31

07040-11409

PLUG

32

07000-12011

O-RING (KIT)

33

TZSBP-1-8

PLUG

Выбрано товаров: 40
