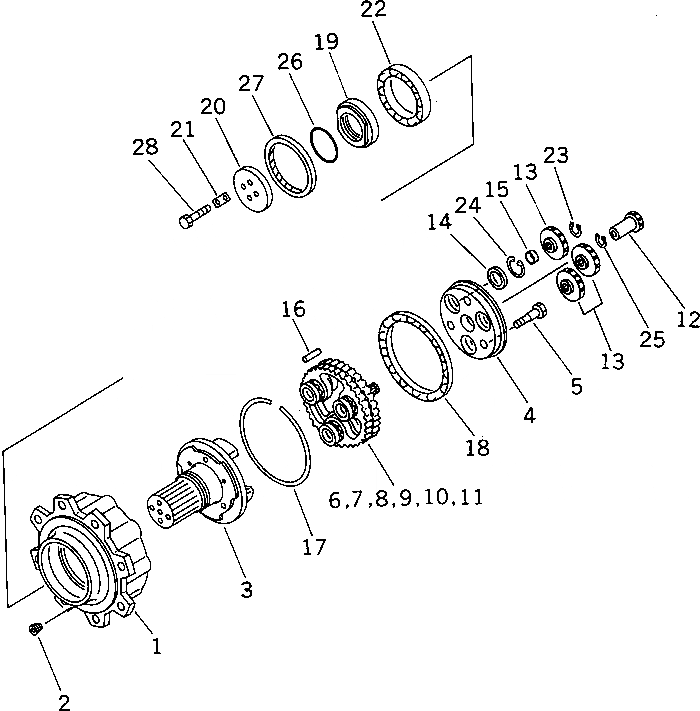

Запчасти Komatsu PF3-1 МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

202-966-4911

MOTOR ASS'Y,SWING (TZ504S000001-A)

|1

202-966-4910

MOTOR ASS'Y,SWING (TZ504S000000-A)

|1

TZ501S1000-01

SWING MACHINERY A.

1

TZ501S1001-00

HUB ASS'Y

2

TZGM3-8

PLUG

|3

TZ501S1101-00

SPINDLE KIT

|3

TZ501S1131-00

SPINDLE ASS'Y

3

SPINDLE

4

FLANGE

5

TZ550A1019-00

BOLT

|6

TZ550A1104-01

RV GEAR ASS'Y

|6

TZ550A1204-00

RV GEAR KIT

6

GEAR

7

GEAR

8

TZ550A1109-00

CRANKSHAFT

9

TZ550A1011-00

SPACER

10

TZ550A1022-01

BEARING,ROLLER

11

TZ550A1023-01

BEARING,NEEDLE

12

TZ501S1006-00

GEAR,INPUT

|13

TZ552A1107-00

SPUR GEAR KIT

13

GEAR

14

TZ550A1013-00

PIECE

15

TZ550A1014-00

PIECE

16

TZ550A1017-00

PIN

17

TZ501S1020-00

RING

18

TZ550A1021-00

BEARING,BALL

19

TZ501S1024-00

NUT

20

TZ501S1026-00

PLATE

21

TZ501S1027-00

PLATE

22

TZ500S1032-00

BEARING,ROLLER

23

04064-02212

RING,SNAP

24

04065-04518

RING,SNAP

25

04064-01410

RING,SNAP

26

TZARP568-040-9

O-RING (KIT)

27

TZTC105-135-14

SEAL,OIL (KIT)

28

01010-61035

BOLT
