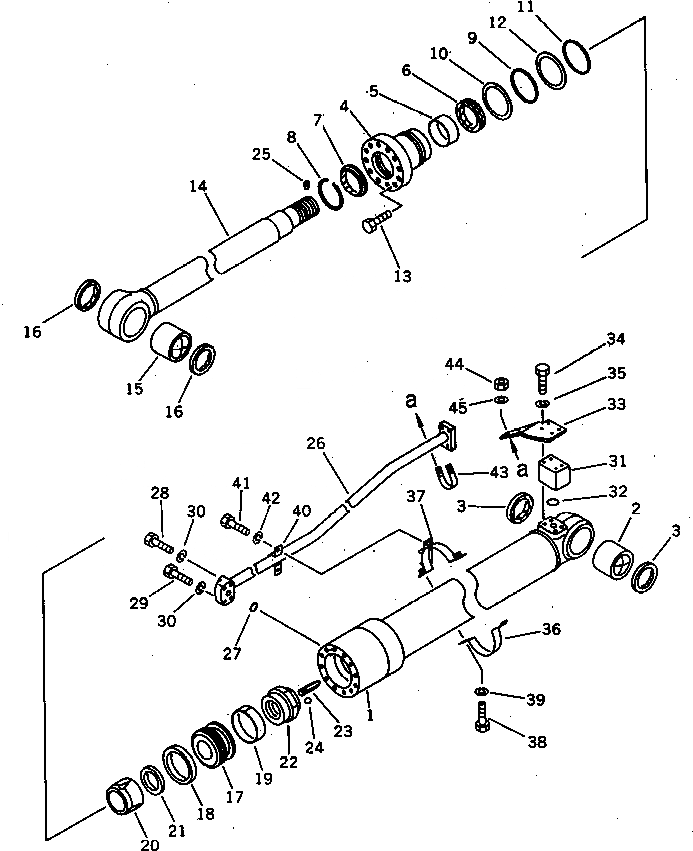

Запчасти Komatsu PF3-1 ЦИЛИНДР РУКОЯТИ УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

202-63-X7040

ARM CYLINDER GROUP

|1

202-63-07040

CYLINDER ASS'Y,ARM

1

20D-63-62140

CYLINDER

2

707-76-70130

BUSHING

3

07145-00070

SEAL,DUST

4

707-28-11370

HEAD,CYLINDER

5

07177-07530

BUSHING

6

707-51-75211

PACKING,ROD

7

07016-20758

SEAL,DUST

8

07179-13089

RING,SNAP

9

07000-12105

O-RING

10

707-35-91111

RING,BACK-UP

11

07000-12105

O-RING

12

07146-02106

RING,BACK-UP

13

01010-51655

BOLT

14

202-63-92520

ROD,PISTON

15

707-76-70130

BUSHING

16

07145-00070

SEAL,DUST

17

707-36-11461

PISTON

18

707-44-11080

RING,PISTON

19

07155-01125

RING,WEAR

20

707-71-60810

PLUNGER

21

707-40-11470

RETAINER

22

707-68-10580

NUT

23

707-71-50231

PLUNGER

24

04260-00635

BALL

25

707-71-91240

SCREW

26

202-966-6220

TUBE

27

07000-13030

O-RING

28

01010-50855

BOLT

29

01010-50845

BOLT

30

01602-20825

WASHER,SPRING

31

202-966-6210

ELBOW

32

07000-13025

O-RING

33

202-966-6240

BRACKET

34

01010-50885

BOLT

35

01602-20825

WASHER,SPRING

36

707-88-99110

BAND

37

202-966-6230

BAND

38

01010-51035

BOLT

39

01602-21030

WASHER,SPRING

40

07282-02288

CLAMP

41

01010-51020

BOLT

42

01602-21030

WASHER,SPRING

43

07283-22236

CLIP

44

01599-01011

NUT

45

01643-31032

WASHER
