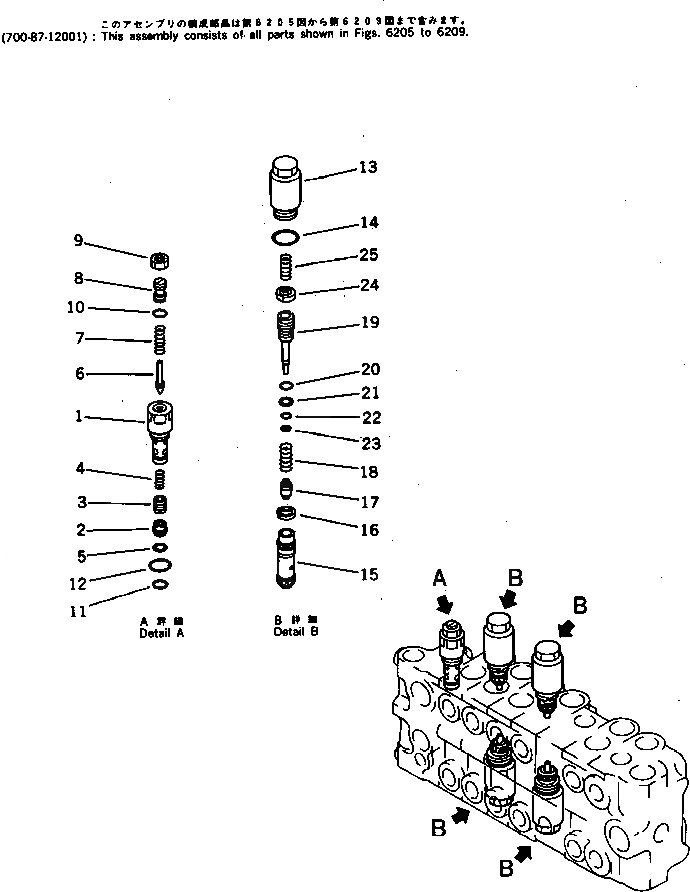

Запчасти Komatsu PF3-1 7-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-87-12001

VALVE ASS'Y,CONTROL

|1

700-26-53000

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-20-51540

RETAINER

3

VALVE

4

700-20-51610

SPRING

5

700-20-51550

RING,SNAP

6

700-80-61190

POPPET

7

700-20-51580

SPRING

8

700-20-51340

SCREW

9

01582-11411

NUT

10

07000-02011

O-RING

11

700-22-11410

O-RING

12

07002-02434

O-RING

|13

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

13

700-80-62310

SLEEVE

14

07002-03034

O-RING

15

VALVE

16

SEAL

17

POPPET

18

SPRING

19

PISTON

20

O-RING

21

RING,BACK-UP

22

O-RING

23

SEAL

24

NUT

25

700-80-62250

SPRING
