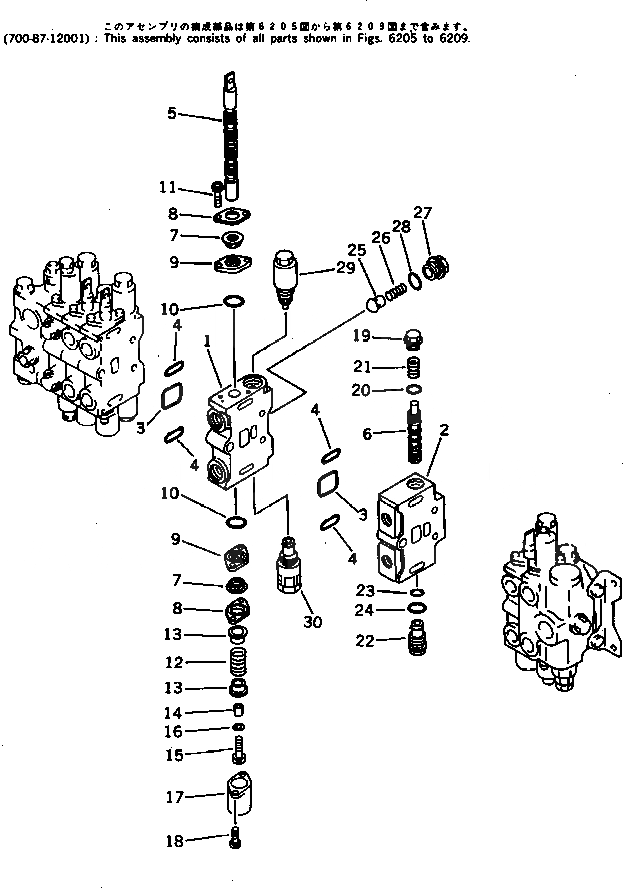

Запчасти Komatsu PF3-1 7-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-87-12001

VALVE ASS'Y,CONTROL

1

BLOCK,VALVE

2

BLOCK,VALVE

3

07000-13050

O-RING

4

07000-03038

O-RING

5

SPOOL

6

SPOOL

7

700-84-13910

SEAL

8

700-84-13891

PLATE

9

700-84-13923

PLATE

10

700-84-11240

O-RING

11

01252-30620

BOLT

12

700-84-11650

SPRING

13

700-84-13711

RETAINER

14

700-84-11641

COLLAR

15

01252-30830

BOLT

16

01643-30823

WASHER

17

700-84-11390

COVER

18

01252-30630

BOLT

19

700-84-13870

PLUG

20

07002-02434

O-RING

21

700-84-13880

SPRING

22

700-84-13510

NIPPLE

23

07000-02015

O-RING

24

07002-02434

O-RING

25

700-42-31460

VALVE

26

700-42-31470

SPRING

27

700-84-11320

PLUG

28

07002-13034

O-RING

29

700-81-63002

VALVE ASS'Y,SUCTION AND SAFETY

30

700-81-74001

VALVE ASS'Y,SAFETY
