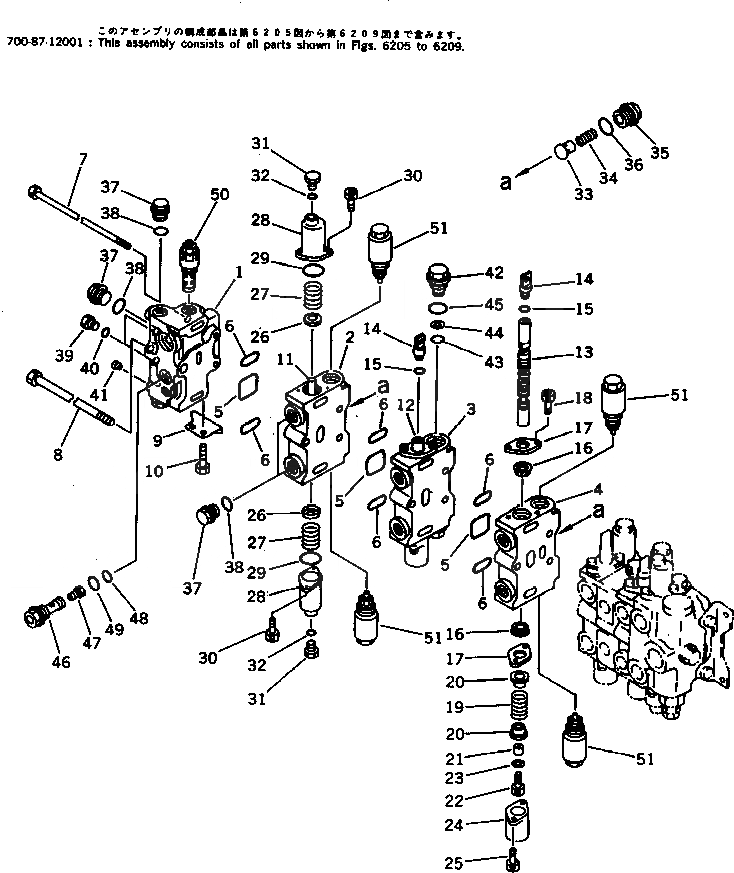

Запчасти Komatsu PF3-1 7-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-87-12001

VALVE ASS'Y,CONTROL

1

COVER,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

BLOCK,VALVE

5

07000-13050

O-RING

6

07000-03038

O-RING

7

700-87-11130

BOLT

8

700-87-11140

BOLT

9

700-84-13830

BRACKET

10

01010-51020

BOLT

11

SPOOL

12

SPOOL

13

SPOOL

14

700-84-11870

JOINT

15

07002-11223

O-RING

16

700-84-13910

SEAL

17

700-84-13891

PLATE

18

01252-30612

BOLT

19

700-84-11650

SPRING

20

700-84-13711

RETAINER

21

700-84-11641

COLLAR

22

01252-30830

BOLT

23

01643-30823

WASHER

24

700-84-11390

COVER

25

01252-30625

BOLT

26

700-84-13781

RETAINER

27

700-84-13770

SPRING

28

700-84-12510

CASE

29

700-84-11240

O-RING

30

01252-30616

BOLT

31

07040-11409

PLUG

32

07002-01423

O-RING

33

700-42-31460

VALVE

34

700-42-31470

SPRING

35

700-84-11320

PLUG

36

07002-13034

O-RING

37

700-22-11370

PLUG

38

07002-12434

O-RING

39

07040-11409

PLUG

40

07002-01423

O-RING

41

07043-70108

PLUG

42

700-84-13960

PLUG

43

700-22-11410

O-RING

44

700-80-64220

RING,BACK-UP

45

07002-03034

O-RING

|46

700-84-13860

ORIFICE ASS'Y

46

700-84-13840

ORIFICE

47

700-84-13850

SENSOR

48

07000-02014

O-RING

49

07002-02434

O-RING

50

700-26-53000

VALVE ASS'Y,MAIN RELIEF

51

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY
